214366 105 Revision A
Installing Tall Crop Feed Plates under Driveline Deflector
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Locate the feed plates. Refer to 4.11.1 Removing the
Tall Crop Feed Plates from Storage, page 103.
2. Lower the header fully.
3. Stop the engine and remove the key.
4. Open the cutterbar door(s). Refer to 3.5 Cutterbar
Doors, page 33.
1006819
A

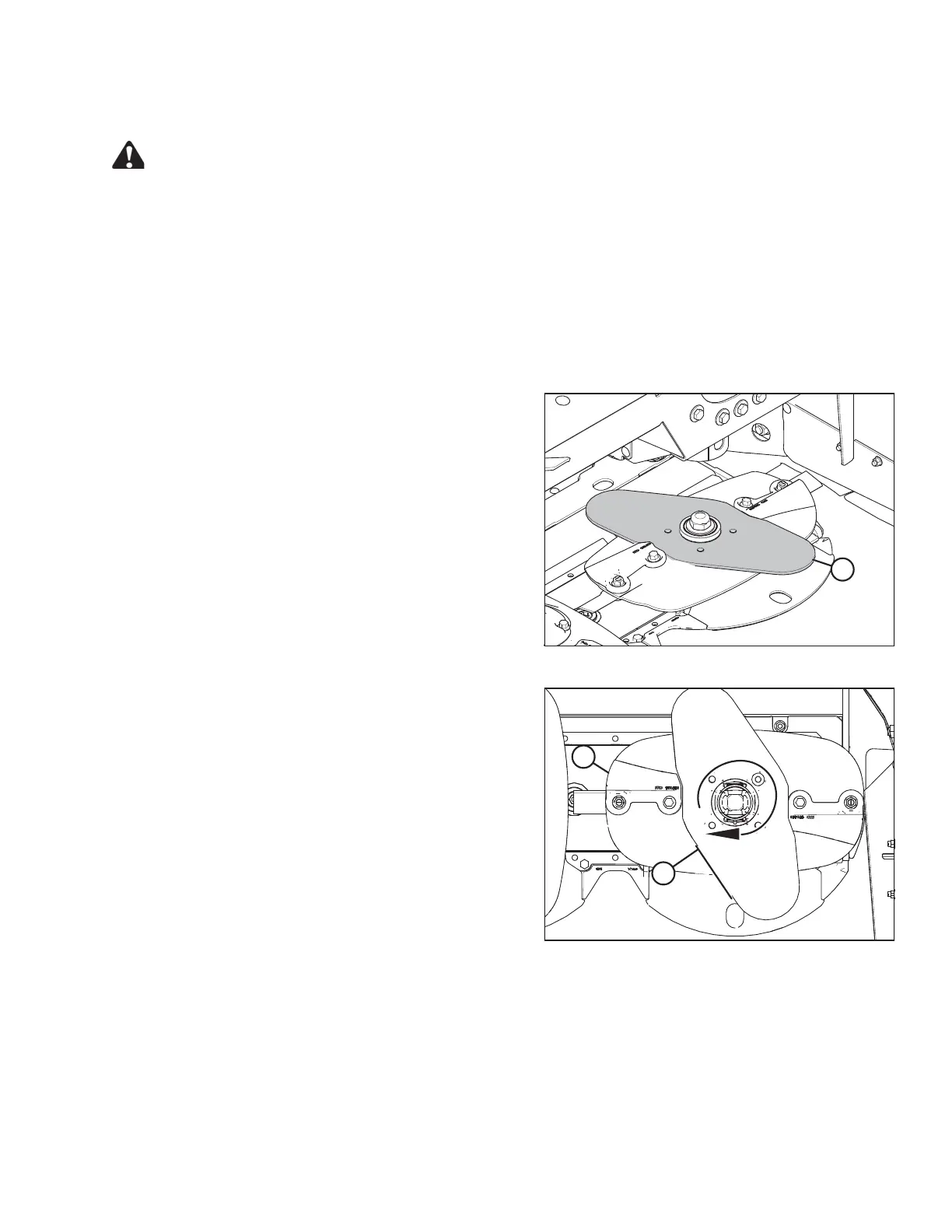

Figure 4.32: Left End Shown
6. Install feed plate (A) on the disc.
1006832
A
B
Figure 4.33: Left End Top View Shown
IMPORTANT:
Depending on disc (B) rotation, feed plate (A) should be
located so that when holes are aligned, the leading edge
of the feed plate is farther from accelerator (B) than the
trailing edge.
7. Install the deflector. Refer to Installing the Driveline
Deflector, page 152.
OPERATING THE HEADER
