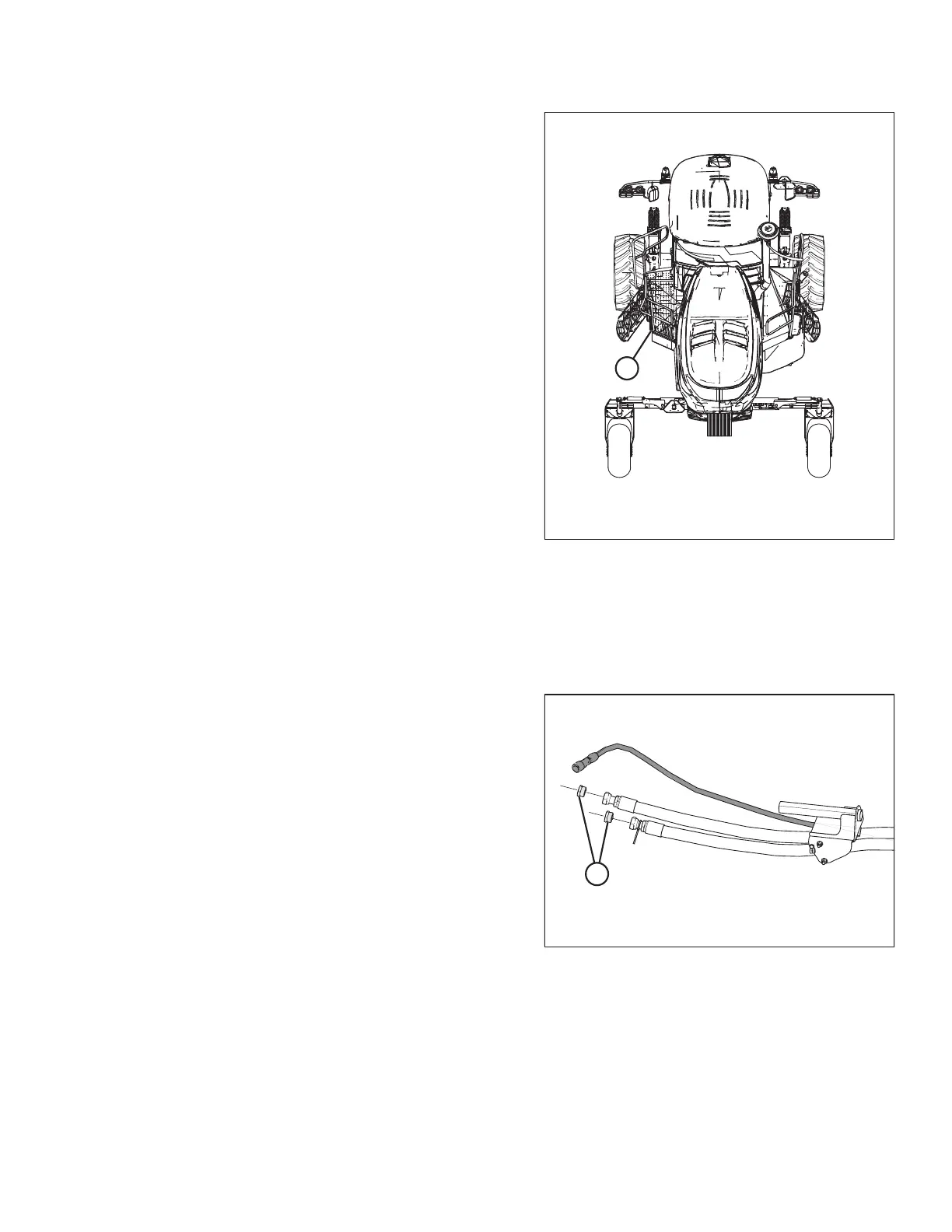

Figure 3.74: Windrower with Left Platform in
Closed Position
3. Move left windrower platform (A) to the
CLOSED position. For instructions, refer to the
windrower operation’s manual.
Connecting Header Hydraulics Using Hard Plumbing: M1240 Windrowers
Hard plumbing helps reduce the potential for leaks at the hydraulic connection sites and helps the header drive run
more efficiently. To connect the R85 Header to the M1240 Windrower with hard plumbing, follow these steps.
1018909
A
Figure 3.75: Protective Shipping Plugs on R85
Hydraulic Hoses
1. Remove protective plugs (A) from ends of
hydraulic hoses.
