Installing the Driven Deflector
Follow these steps to replace the driven rotary deflector:
1006796
A
B
C

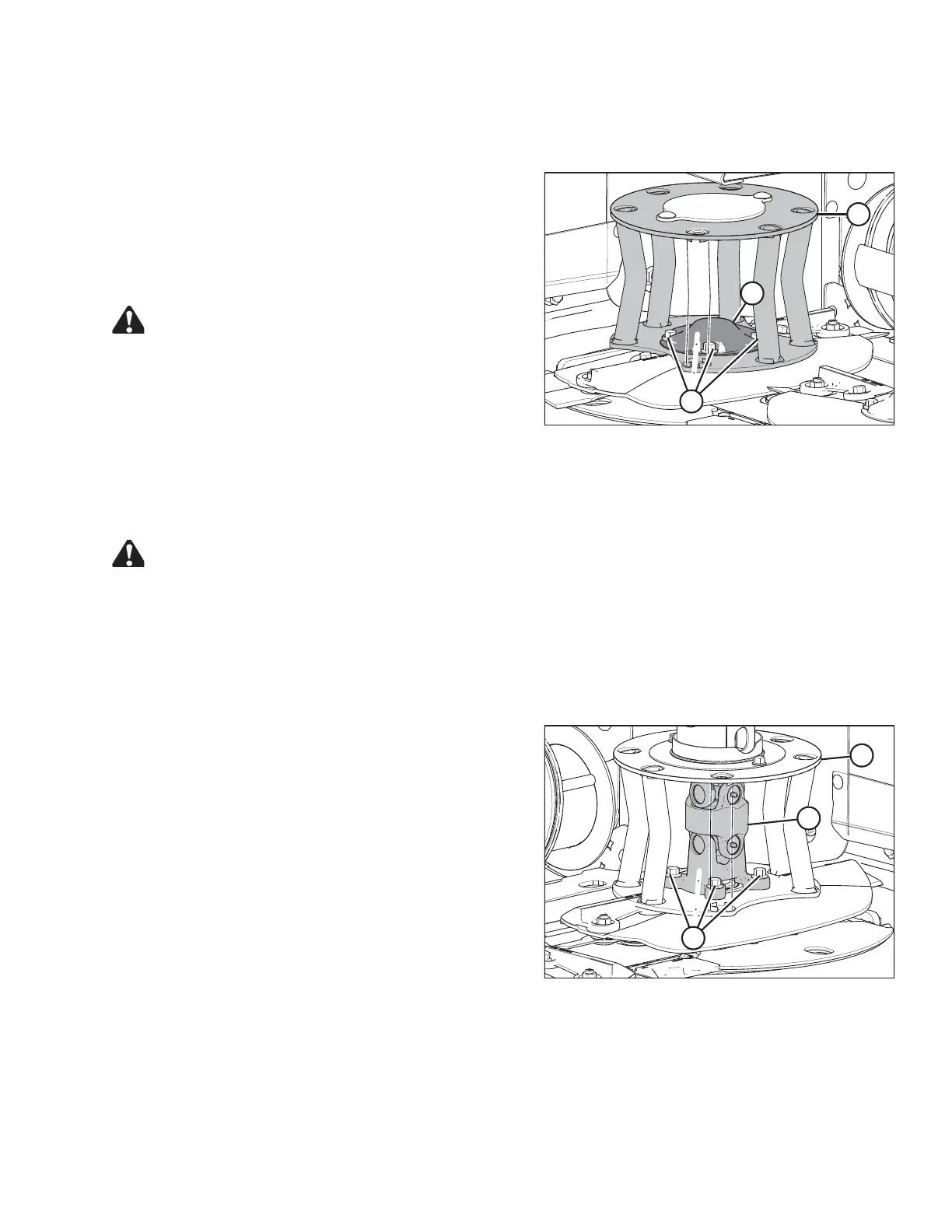

Figure 5.32: Driven Deflector
1. Position new deflector (C) on spindle so that it clears
accelerators (D).
2. Install cover (B) and secure with four bolts (A).
3. Tighten bolts.
4. Remove block of wood (if used).
WARNING
Ensure cutterbar is completely clear of foreign objects.
These objects can be ejected with considerable force
when the machine is started and may result in serious
injury or machine damage.
Removing the Driveline Deflector
Follow these steps to remove the driveline deflector:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Lower the header fully.
2. Stop the engine and remove the key.
3. Open the cutterbar doors. Refer to 3.5 Cutterbar Doors, page 33.
1006787
A
B
C
Figure 5.33: Driveline Deflector
4. On the left end of the cutterbar, locate deflector (C) with
the driveline in the center of it.
5. Remove four bolts (A) and flat washers that secure
driveline (B) and disc to the spindle.
6. Rotate deflector (C) as required so the large opening in
deflector faces you.
7. Remove driveline (B) through the larger opening in the
deflector.
