214366 108 Revision A
4.12 Tall Crop Divider Option
Tall crop dividers (one on each end of the header) assist in clean crop dividing and cutterbar entry in tall crops. Tall
crop dividers are not adjustable, but they are removable.
4.12.1 Installing Tall Crop Divider
To install the tall crop divider kit (MD #B5509), follow these steps:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1009278

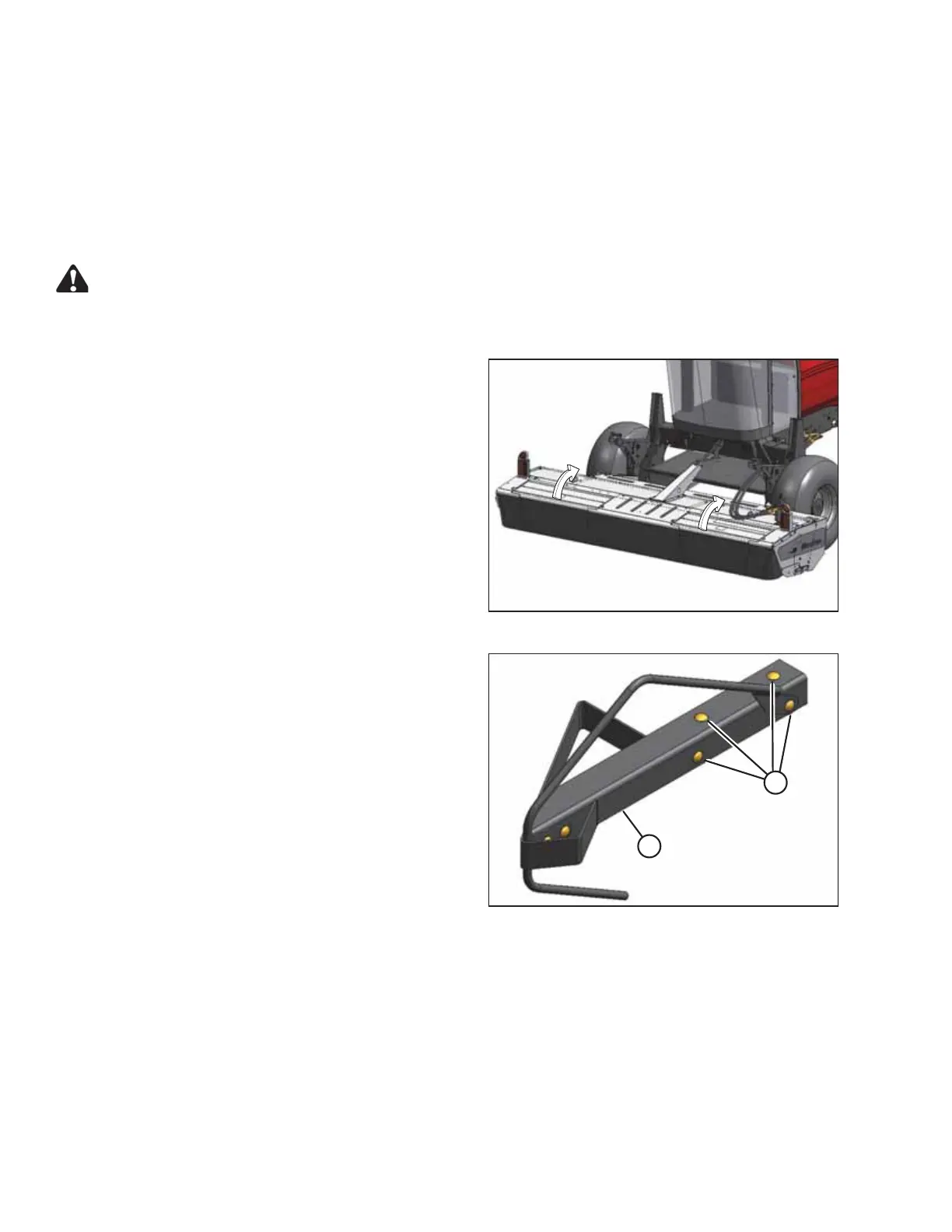

Figure 4.38: Cutterbar Doors
1. Lower header fully.
2. Stop the engine, and remove the key.
3. Unpack kit.
4. Open cutterbar doors. Refer to 3.5 Cutterbar Doors,
page 33.
1009277
A
B
Figure 4.39: Tall Crop Divider Kit (Left Shown,
Right Side Opposite)
5. Remove four bolts (A) from divider (B).
NOTE:
Mounting holes in header should be vacant. Remove
fasteners, if necessary.
OPERATING THE HEADER
