214366 104 Revision A
Installing Tall Crop Feed Plates under Driven Deflector
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Lower header fully.
2. Stop the engine and remove the key.
3. Open the cutterbar doors. Refer to 3.5 Cutterbar Doors,
page 33.
4. Remove driven deflector. Refer to Removing the Driven
Deflector, page 150.
5. Remove the tall crop feed plates from storage. Refer to
4.11.1 Removing the Tall Crop Feed Plates from
Storage, page 103.
1006817
A

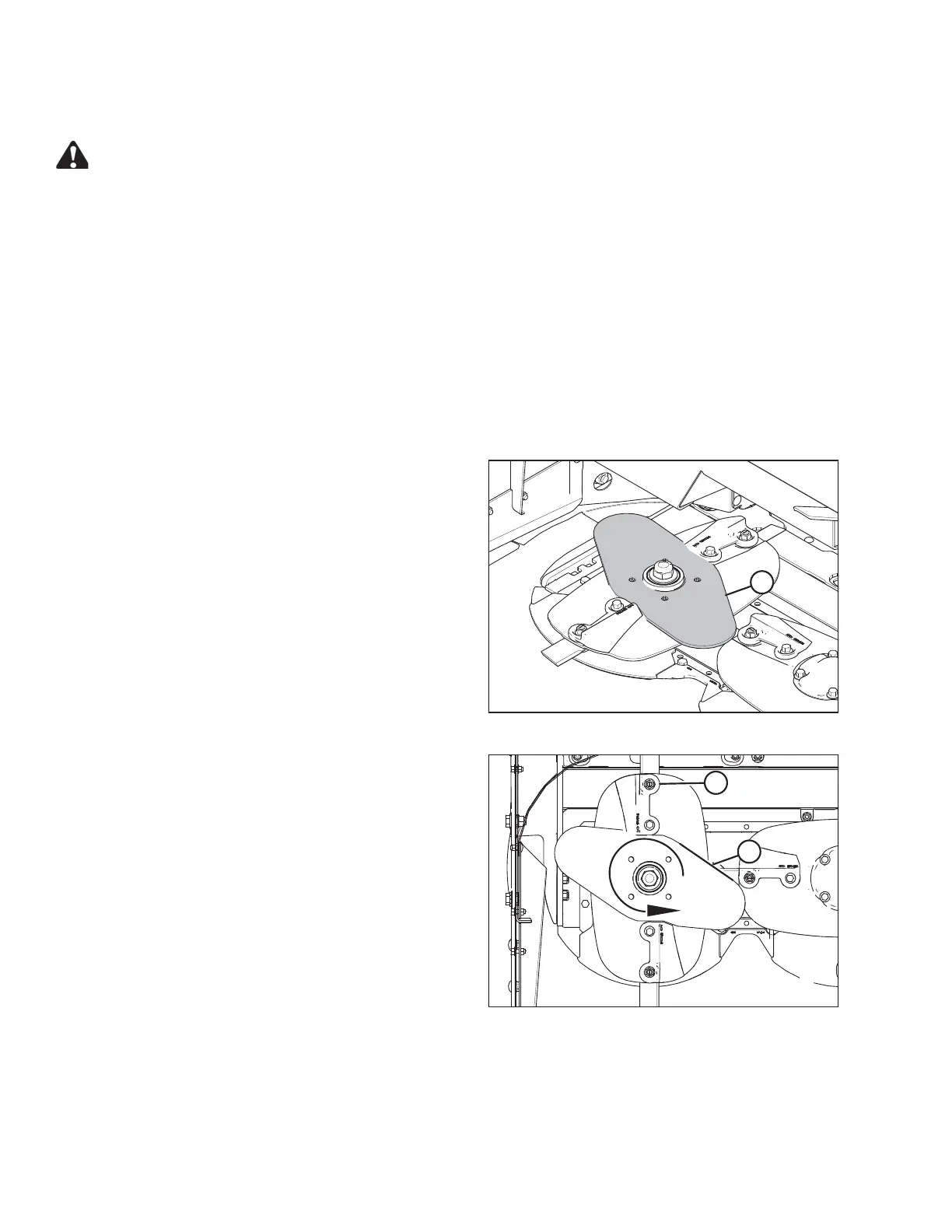

Figure 4.30: Right End Shown
6. Position feed plate (A) on the disc, ensuring that hole in
feed plate registers on disc. Position plate
approximately as shown and align holes.
1006833
A
B
Figure 4.31: Right End Top View
IMPORTANT:
Depending on disc (B) rotation, feed plate (A) should be
positioned so that when holes are aligned, the leading
edge of the feed plate is farther from accelerator (B) than
the trailing edge.
8. Install the deflector. Refer to Installing the Driven
Deflector, page 151.
9. Close the cutterbar doors. Refer to 3.5 Cutterbar Doors,
page 33.
OPERATING THE HEADER
