4.7.2 Adjusting the Skid Shoe Height
Optional adjustable skid shoes are available to provide different cutting heights.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, stop engine, remove
key, and engage header safety props before going under machine for any reason.
To adjust skid shoe height, follow these steps:
1. Raise header fully.
2. Stop the engine and remove the key.
3. Engage header safety props. Refer to 3.3 Engaging and Disengaging Header Safety Props, page 28.
1004541
B
A

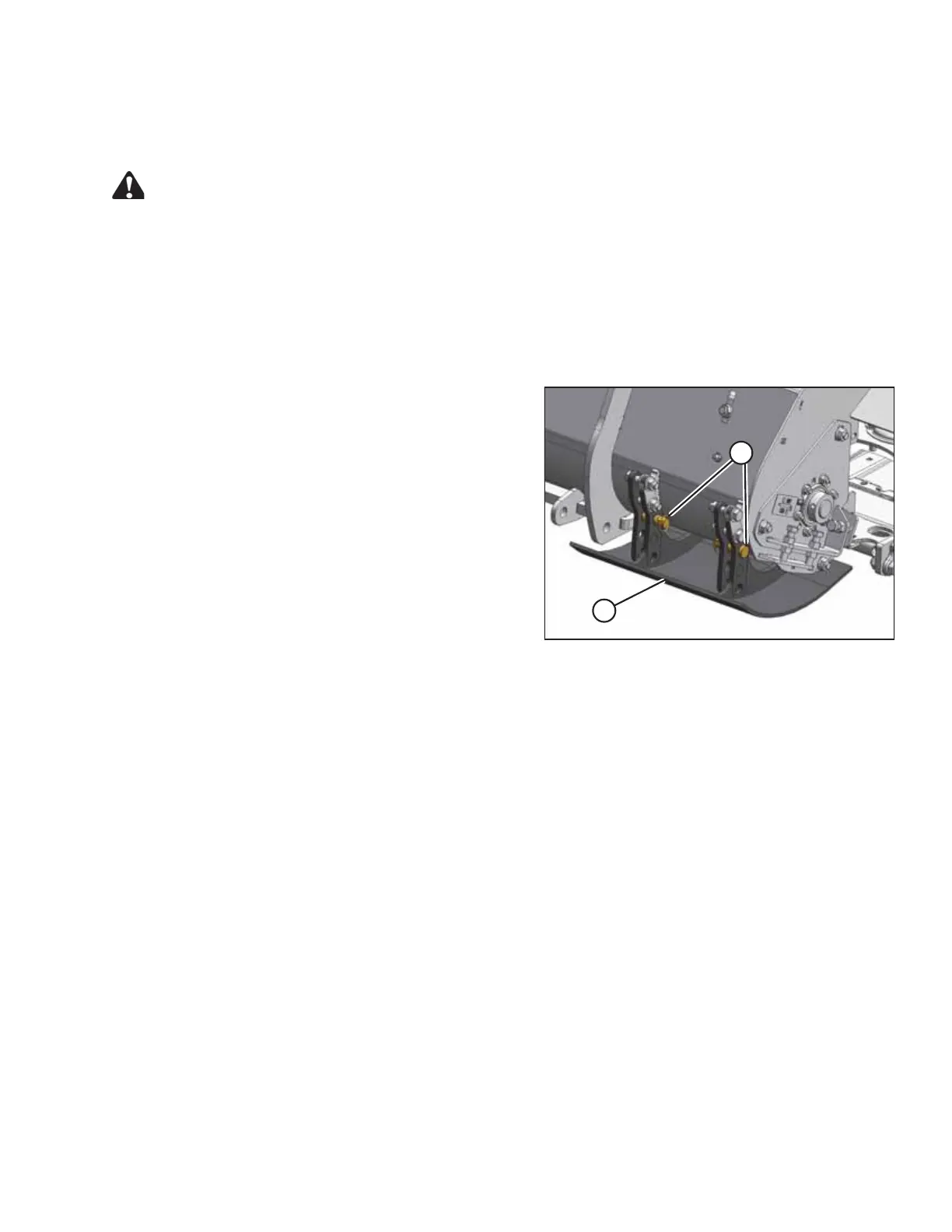

Figure 4.25: Skid Shoe
4. Remove lynch pin and remove adjuster pin (A) from one
side of skid shoe (B).
5. Hold skid shoe and remove lynch pin and adjuster
pin (A) from other side. Position shoe at desired
position, and reinstall adjuster pins (A). Secure with
lynch pins.
6. Repeat for skid shoe at opposite end of header.
7. Check header float as described in 4.1 Header Float,
page 81.
8. Adjust header angle to desired working position using
the machine's header angle controls. If angle is not
critical, set it to mid-position. Refer to 4.6 Header Angle,
page 97.
