214366 169 Revision A
1006237
A
B

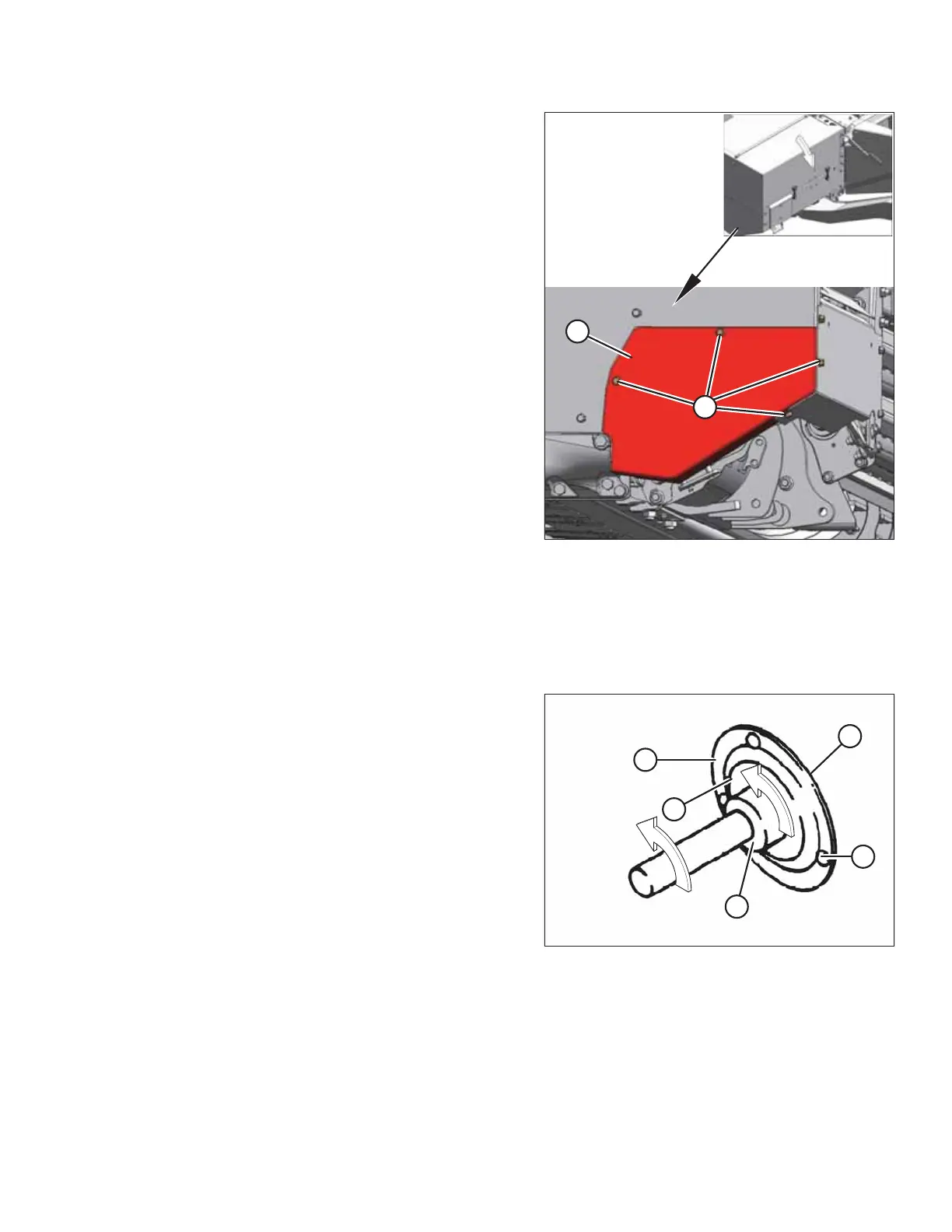

Figure 5.70: Drive Cover – SP
11. Reinstall cover (B) with bolts (A).
12. Close the driveshield. Refer to 3.4 Driveshields, page
30.
13. Adjust the tension of new belts after a short break-in
period (about 5 hours).
5.4.6 Installing Sealed Bearings
Follow these steps to install sealed bearings:
1. Clean shaft and coat with rust preventative.
1001380
A
B
C
D
E
Figure 5.71: Sealed Bearing
2. Install flangette (A), bearing (B), second flangette (C),
and lock collar (D).
NOTE:
The locking cam is only on one side of the bearing.
3. Install (but do NOT tighten) flangette bolts (E).
4. When the shaft is correctly located, lock the lock collar
with a punch.
NOTE:
The collar should be locked in the same direction the
shaft rotates. Tighten the setscrew in the collar.
5. Tighten the flangette bolts.
6. Loosen the flangette bolts on the mating bearing one
turn and retighten. This will allow the bearing to line up.
MAINTENANCE AND SERVICING
