MacDon R85 - Removing Right Endshield; Installing Right Endshield

214366 32 Revision A
3.4.5 Removing Right Endshield
1004545
A
B

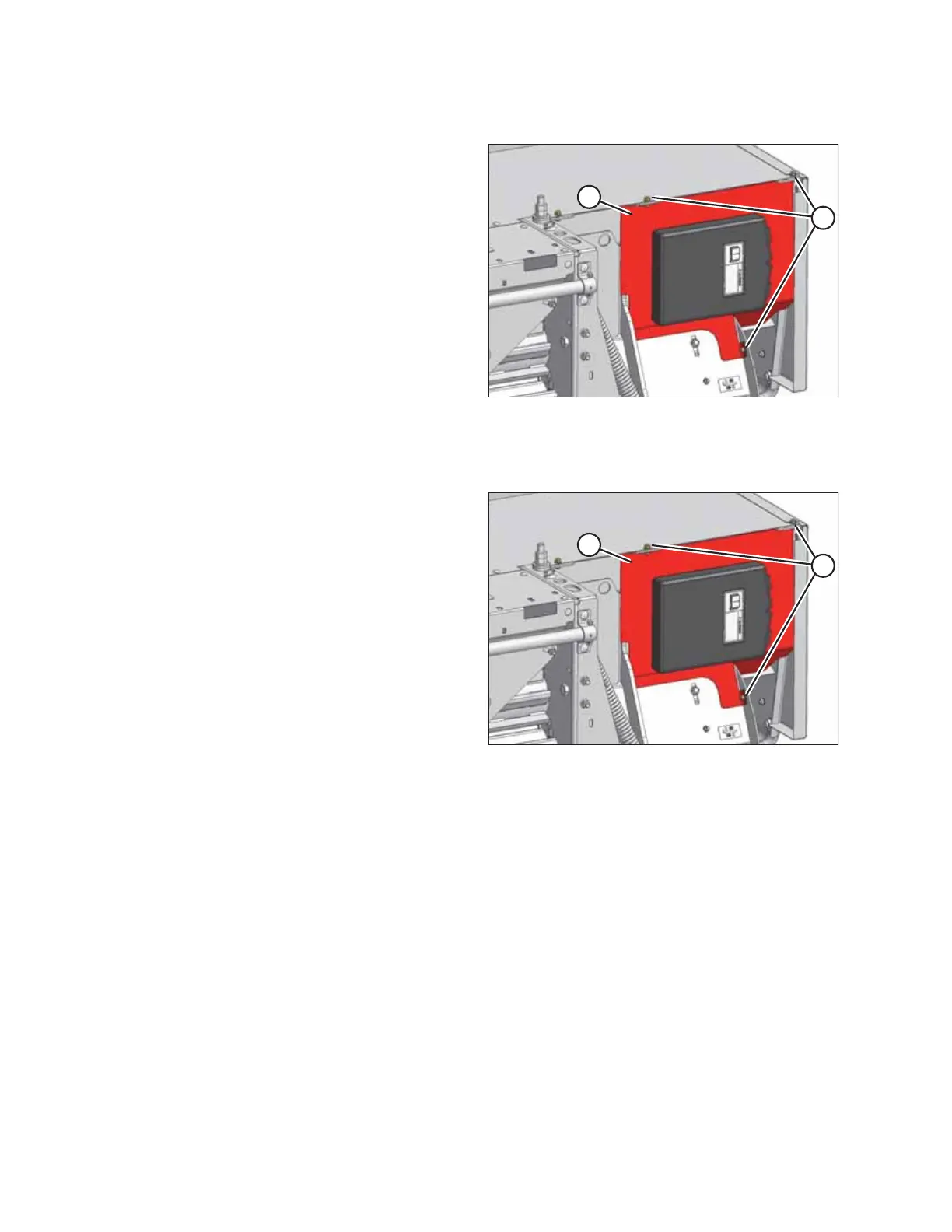

Figure 3.9: Right Endshield
1. Remove three bolts (A) and remove right endshield (B).
NOTE:
Tall crop feed plates are supplied from the factory and
stored behind the right endshield.
3.4.6 Installing Right Endshield
1004545
A
B
Figure 3.10: Right Endshield
1. Install right endshield (B) using three bolts (A).
