Filling the Cutterbar Lubricant
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, stop engine, remove
key, and engage header safety props before going under machine for any reason.
1. Park the machine on level ground.
2. Raise the header fully.
3. Stop the engine and remove the key.
4. Engage header safety props. Refer to 3.3 Engaging and Disengaging Header Safety Props, page 28.
1005237
A

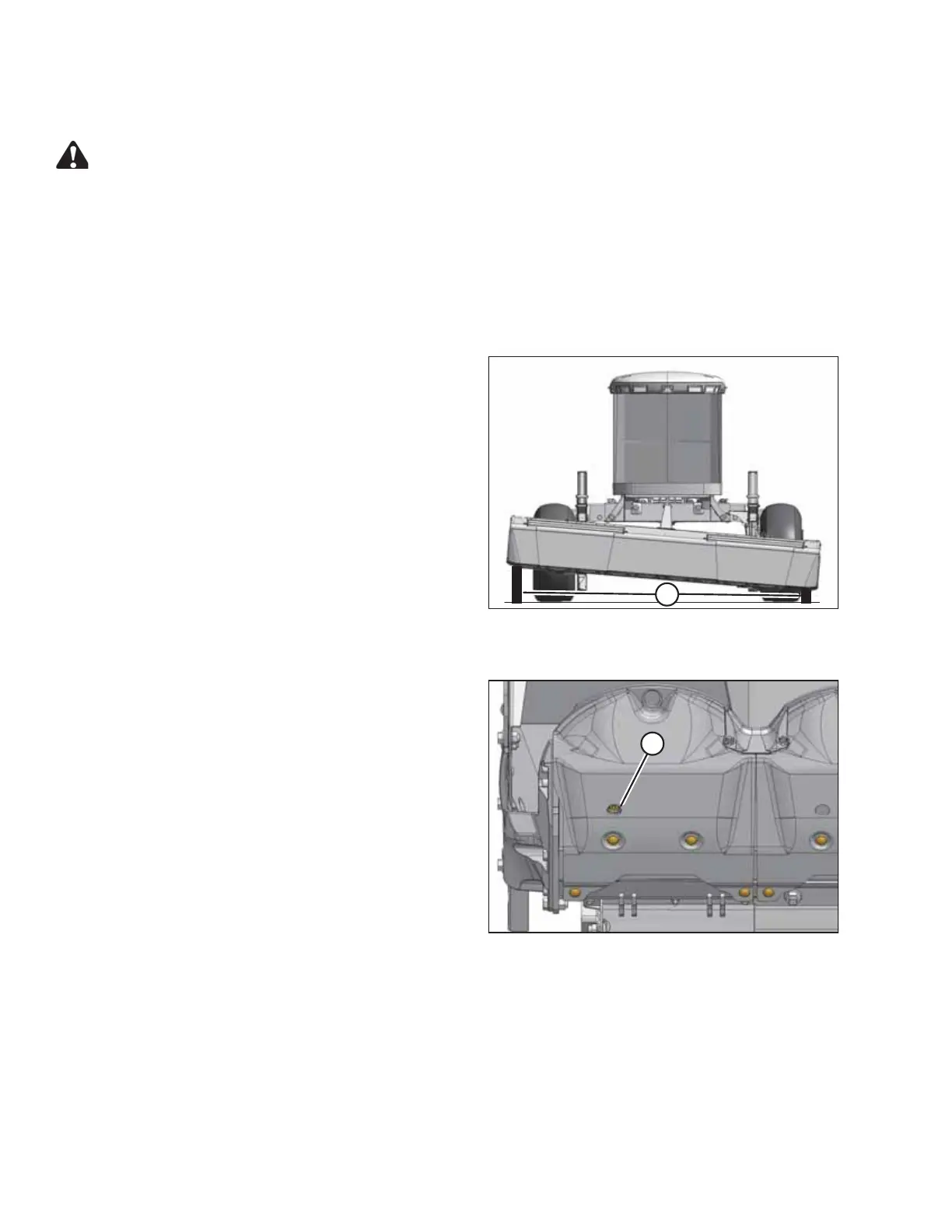

Figure 5.6: Header Raised Right Side
5. Move higher block to right end of header.
NOTE:
Having the fill end higher allows for quicker filling of
cutterbar.
6. Disengage header safety props. Refer to 3.3 Engaging
and Disengaging Header Safety Props, page 28.
7. Start windrower and lower header onto blocks (A).
8. Stop the engine and remove the key.
1004638
A
Figure 5.7: Cutterbar Drain Plug
9. Verify that drain plug (A) has been installed before
adding new lubricant.
10. Locate filler plugs (A) and (B) along the top of the cutterbar. Refer to Figure 5.8, page 135.
