MacDon R85 - 3.4 Driveshields

214366 30 Revision A
3.4 Driveshields
WARNING
Do NOT operate the machine with the driveshields open. High-speed rotating components may throw
debris and could result in death or serious injury.
The Rotary Disc 4.9-Meter (16-Foot) Header for Self-Propelled Windrowers comes in two configurations: one for
use in North America and one for use outside of North America. Headers configured for use outside of North
America are referred to as export headers. The configuration is specified in the title when necessary.
3.4.1 Opening the Driveshield: North American Headers
Follow these steps to open the driveshield on North American headers:
1006043
A
B

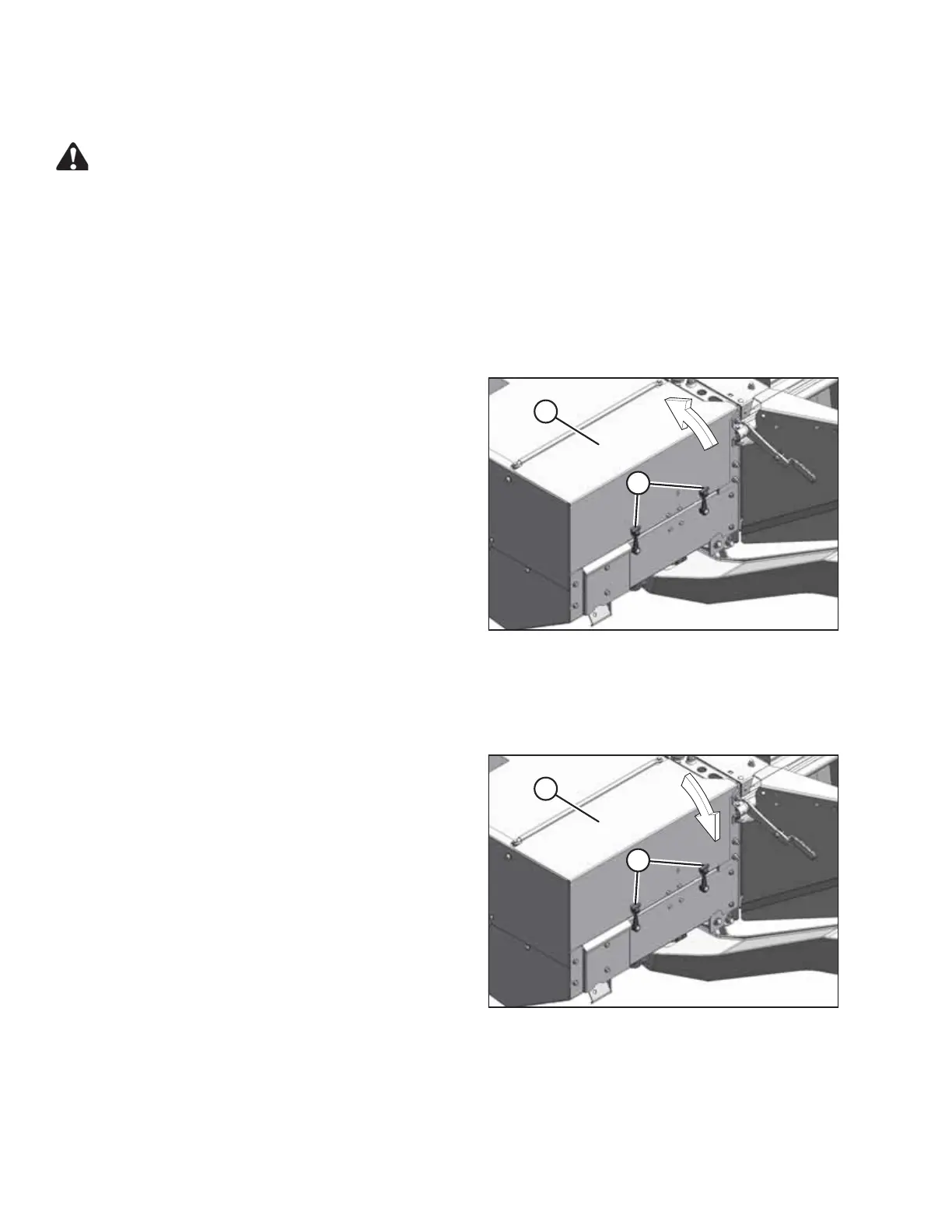

Figure 3.5: Driveshield
1. Release rubber latches (A).
2. Lift shield (B).
3.4.2 Closing the Driveshield: North American Headers
Follow these steps to close the driveshield on North American headers:
1006044
A
B
Figure 3.6: Driveshield
1. Lower shield (B) so that pins at lower end of shield
engage holes in lower panel.
2. Engage rubber latches (A).
OPERATION
