MacDon R85 - Attaching Hydraulic Center-Link with Optional Self-Alignment: M1240 Windrowers

214366 57 Revision A
1005193
A

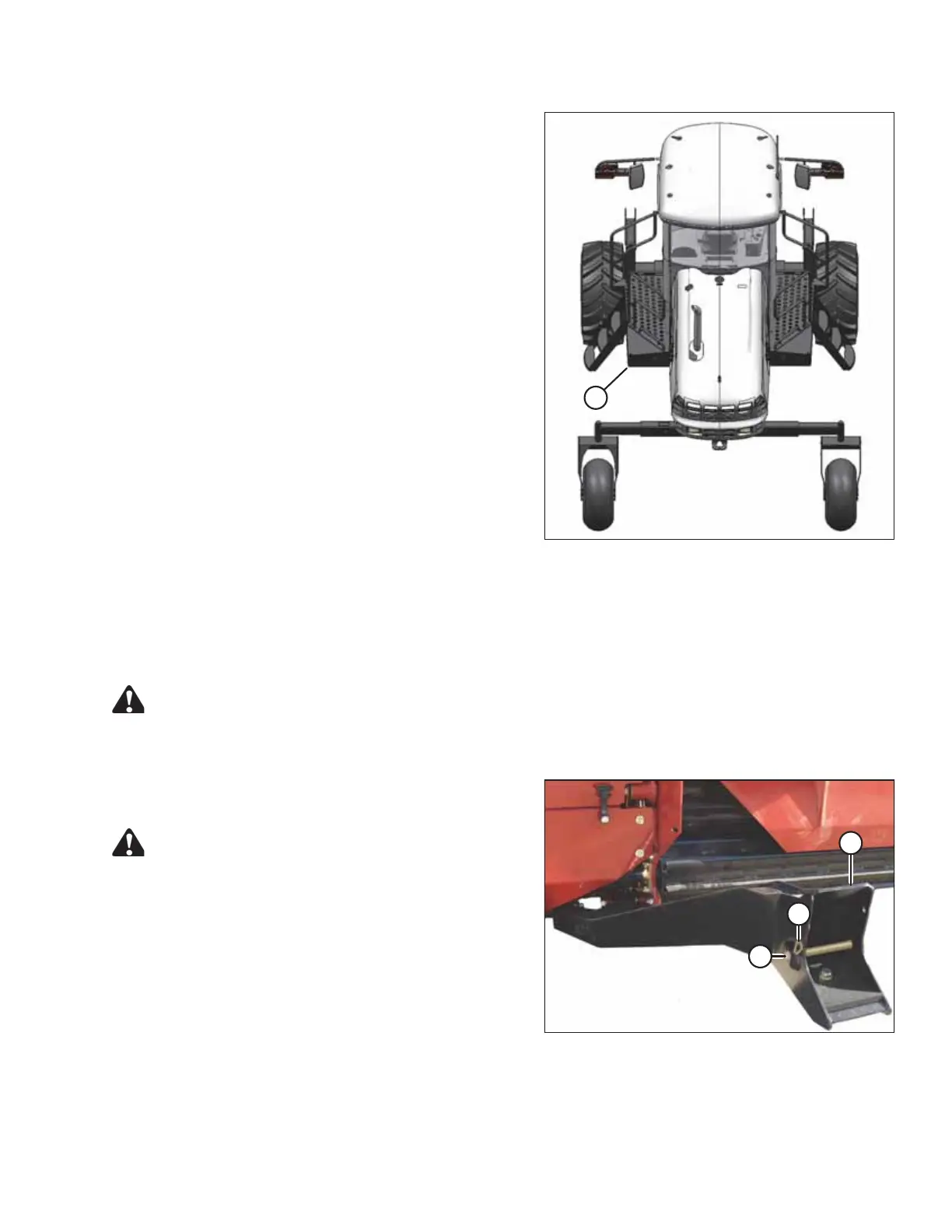

Figure 3.56: Top View of Windrower
20. Move platform (A) to the CLOSED position. For
instructions, refer to the windrower operator’s manual.
3.7.5 Attaching Hydraulic Center-Link with Optional Self-Alignment: M1240
Windrowers
To attach an R85 header to a windrower, follow these steps:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000812
A
B
C
Figure 3.57: Header Support
1. Remove hairpin (B) from clevis pin (A), and remove pin
from header support (C) on both sides of header.
CAUTION
Check to be sure all bystanders have cleared the area.
2. Start engine.
OPERATION
