MacDon R85 - Page 73

214366 56 Revision A
1005200
A
B
C

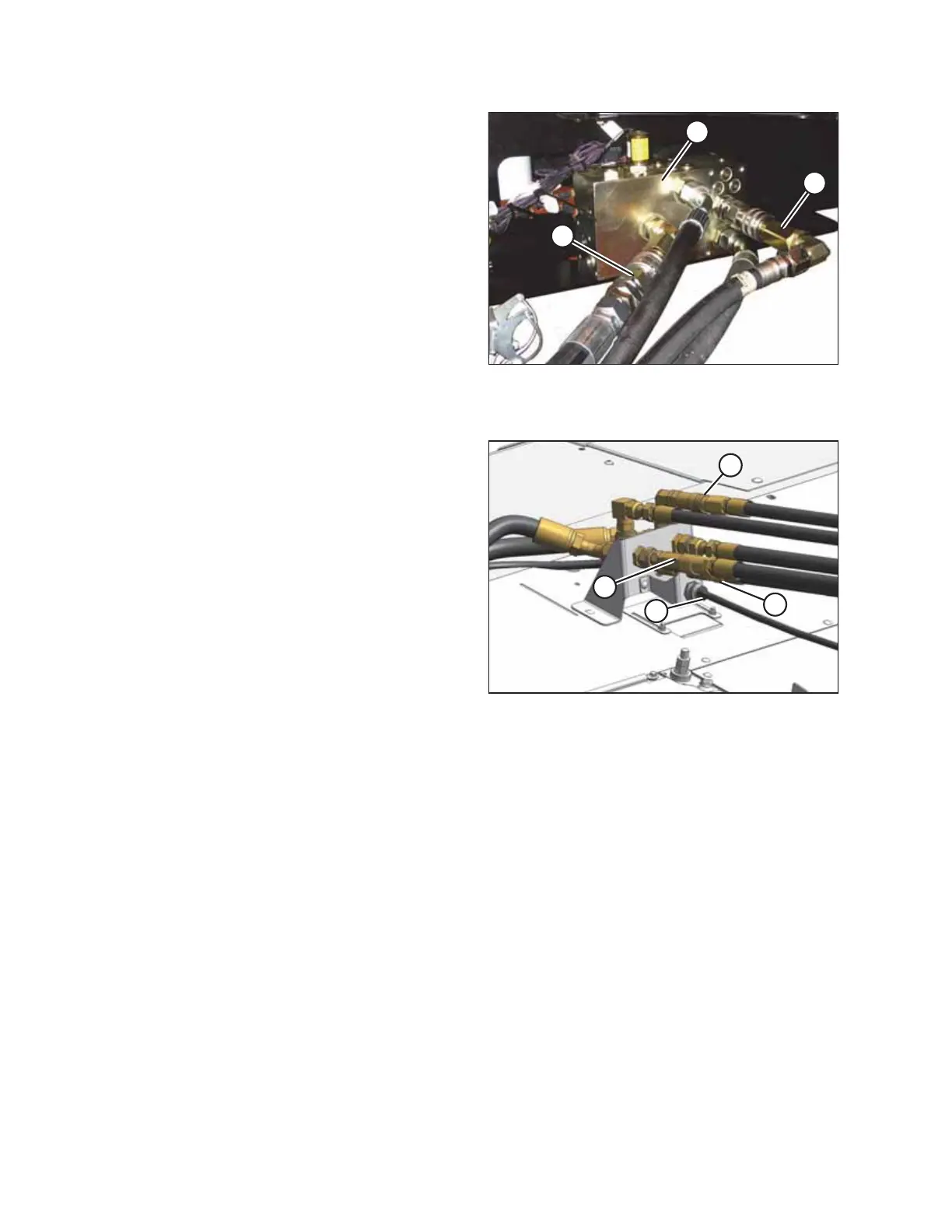

Figure 3.54: Hydraulic Connections
A - Middle Valve Block B - Pressure
C - Return
16. Connect hoses from header to fittings as shown.
NOTE:
If the windrower is equipped with a reverser valve for an
auger header, replace the 90° fitting on hose (C) with a
45° fitting.
1006066
A
B
C
D
Figure 3.55: Header Connections
17. Remove caps and plugs from hoses and lines.
18. Connect the pressure (A), return (B), and case drain (C)
hoses from windrower to fittings on header as shown.
19. Connect electrical harness (D) from windrower to
connector on header.
OPERATION
