3.5.2 Closing the Cutterbar Doors: North American Header
Follow these steps to close the cutterbar doors on a North American header:
CAUTION
To avoid injury, keep hands and fingers away from corners of doors when closing.
1018487
A

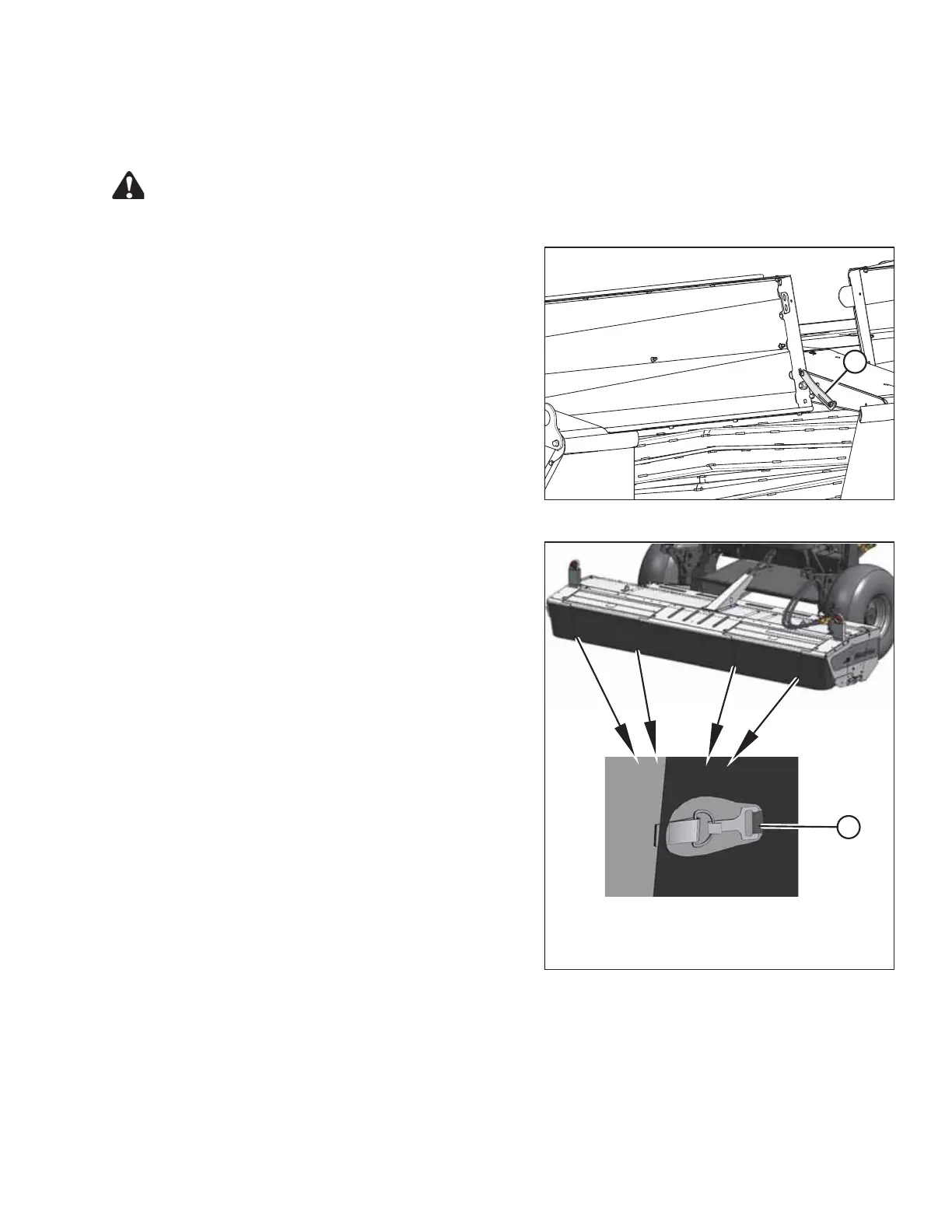

Figure 3.14: Cutterbar Doors
1. Holding the door open, lift safety door latch (A) to
disengage its lock, then move the door down to its
closed position over the cutterbar.
1014155
A
Figure 3.15: Curtain Latches
2. Hook curtain latches (A).
NOTE:
Ensure that curtains hang properly and completely
enclose cutterbar area.
