214366 31 Revision A
3.4.3 Opening the Driveshield: Export Headers
Follow these steps to open the driveshield on export headers:
1004391
B
C
D
A

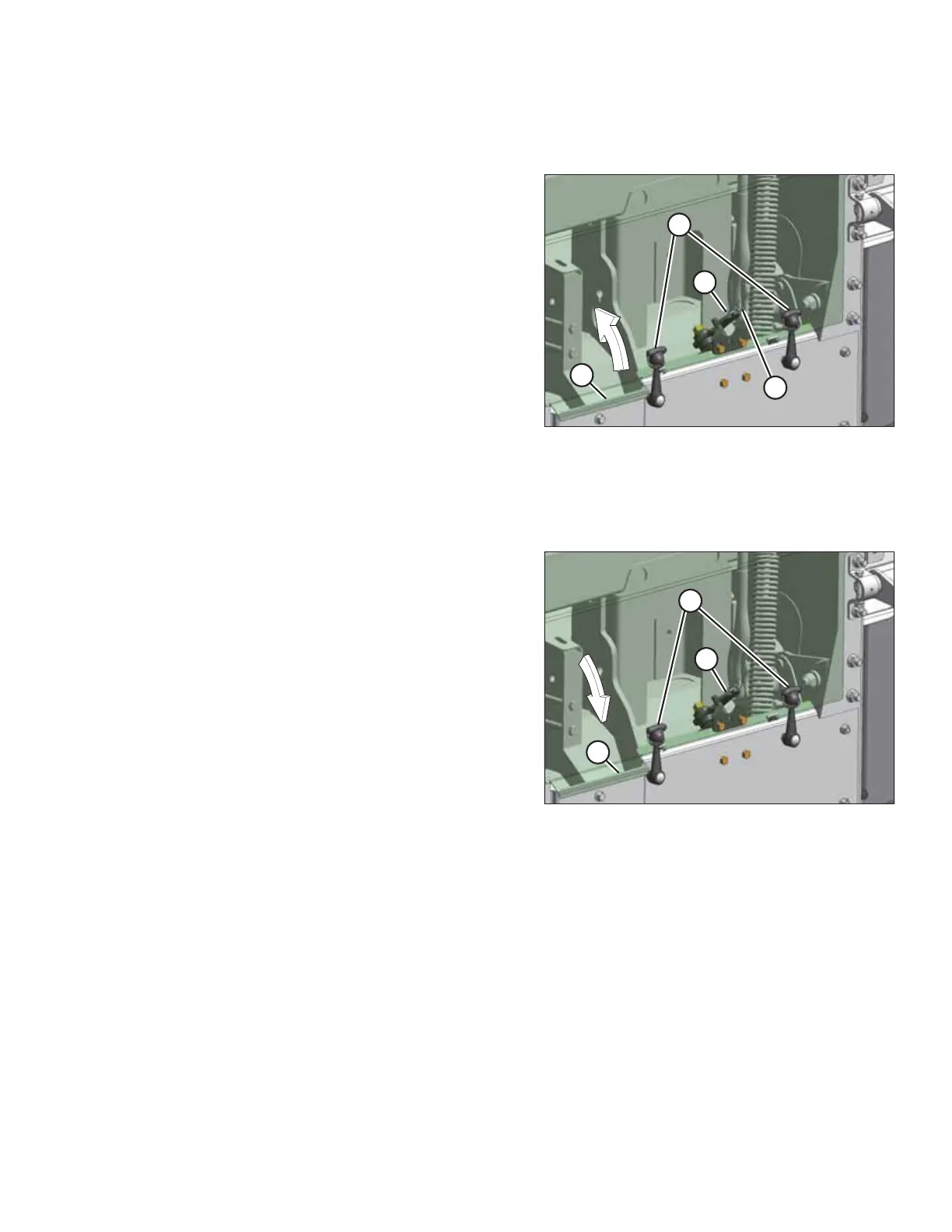

Figure 3.7: Driveshield
1. Release rubber latches (A).
2. Insert a screwdriver (or equivalent) through hole in
shield (B) and into the notch in latch (C) and
disengage latch.
3. Open driveshield (D).
3.4.4 Closing the Driveshield: Export Headers
Follow these steps to close the driveshield on export headers:
1004395
C
B
A
Figure 3.8: Driveshield
1. Lower shield (C) so that pins at lower end of shield
engage holes in the lower panel, and latch (B) re-
engages the driveshield.
2. Engage rubber latches (A).
OPERATION
