214366 75 Revision A
3.8.3 Detaching the Header: M200 Windrowers
Refer to your windrower operator’s manual for procedure to mechanically detach the header from a windrower.
Refer to the following procedure to disconnect electrical and hydraulic systems:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground. If the ground is soft, place blocks under the header.
2. Stop the engine and remove the key.
1005185
A

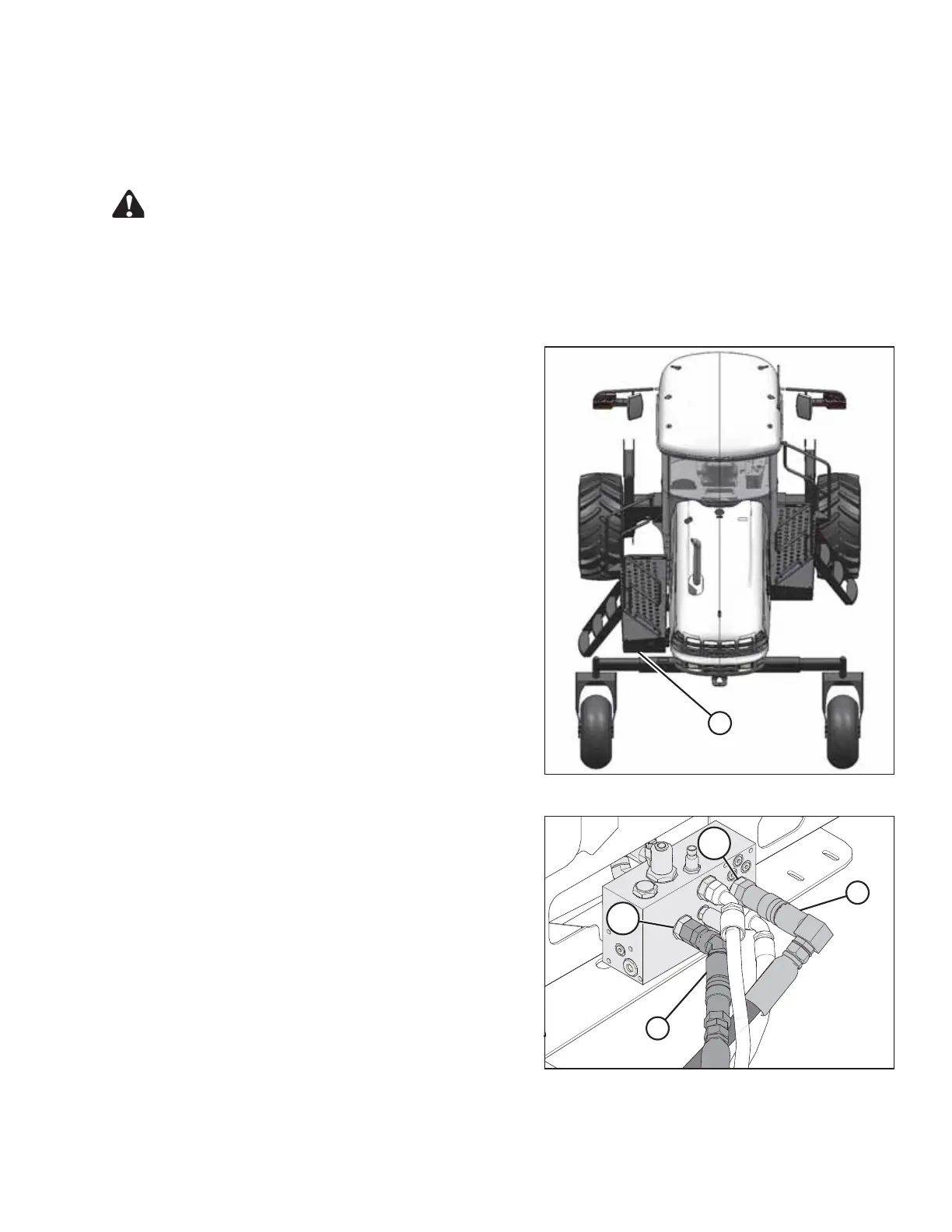

Figure 3.96: Windrower Left Platform
3. Move left side (cab-forward) platform (A) to the
open position. For instructions, refer to the windrower
operator’s manual.
M2
R2
M1
1010990
M2
R2
A
B
Figure 3.97: Hydraulic Connections
4. Disconnect pressure hose (A) from port (M2) on the
header drive valve block.
5. Disconnect return hose (B) from port (R2) on the
header drive valve block.
6. Install plugs and caps on open windrower lines and
header hoses.
OPERATION
