MacDon R85 - Page 91

214366 74 Revision A
1005210
A
B

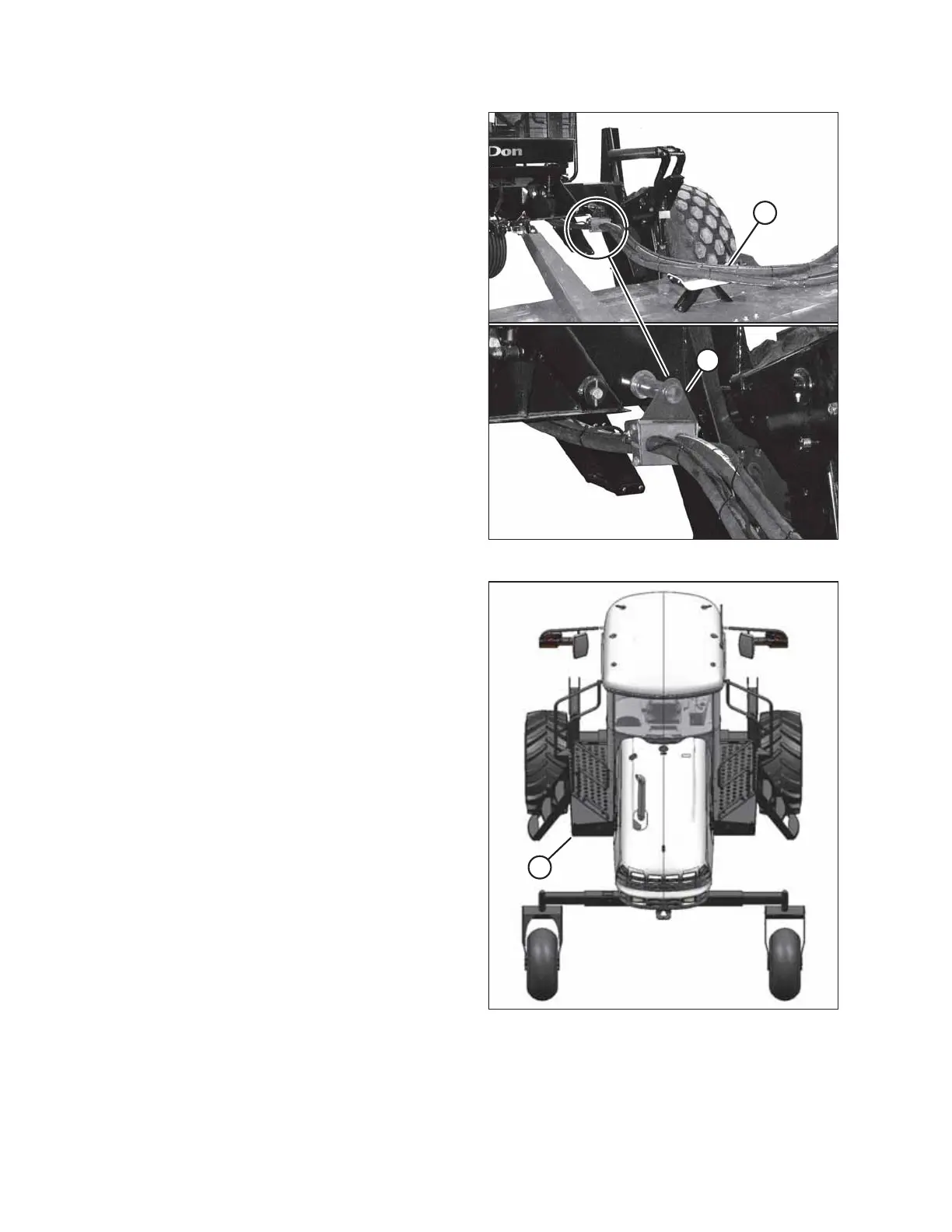

Figure 3.94: Hose Bundle
14. Remove hose support (A) from the windrower frame.
15. Route hoses (B) and electrical harness onto the header.
1005193
A
Figure 3.95: Windrower Left Platform
16. Move maintenance platform (A) to the
CLOSED position. For instructions, refer to the
windrower operator’s manual.
17. For instructions on mechanically detaching the header
from the windrower, refer to the windrower operator's
manual.
OPERATION
