MacDon R85 - Installing the Hydraulic Motor

214366 171 Revision A
1014211
A

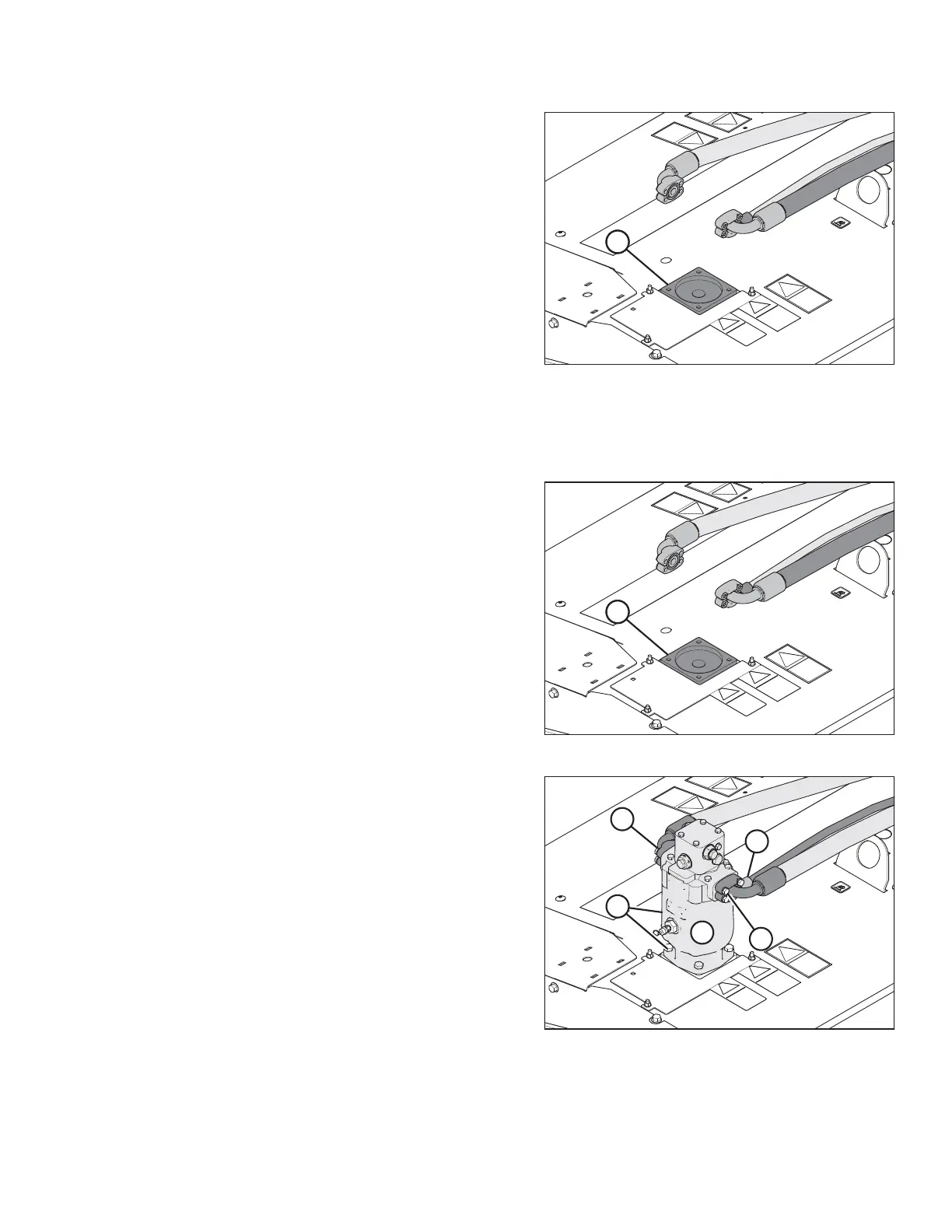

Figure 5.74: Hydraulic Motor Removed
7. Cover gearbox opening (A) with a rag or plastic.
Installing the Hydraulic Motor
Follow these steps to install the hydraulic motor:
1014211
A
Figure 5.75: Hydraulic Motor Removed
1. Remove covering from gearbox opening (A).
2. Attach a sling to the motor with the opposite end to a
lifting device.
1014209
A
B
C
C
D
Figure 5.76: Hydraulic Motor: 16-foot
3. Lower motor (B) on gearbox opening.
4. Install four bolts (D) and torque to 140 Nm (103 lbf·ft).
5. Remove caps from motor ports and hoses.
6. Connect case drain hose (A) to motor.
7. Connect hoses (C) to motor (B) with split flanges (E)
and torque to 64–77 Nm (47–57 lbf·ft).
NOTE:
Hydraulic connections vary depending on the
windrower. Refer to the specific instruction supplied
with your hydraulic drive kit.
