MacDon R85 - 2.2 Component Identification

214366 21 Revision A
2.2 Component Identification

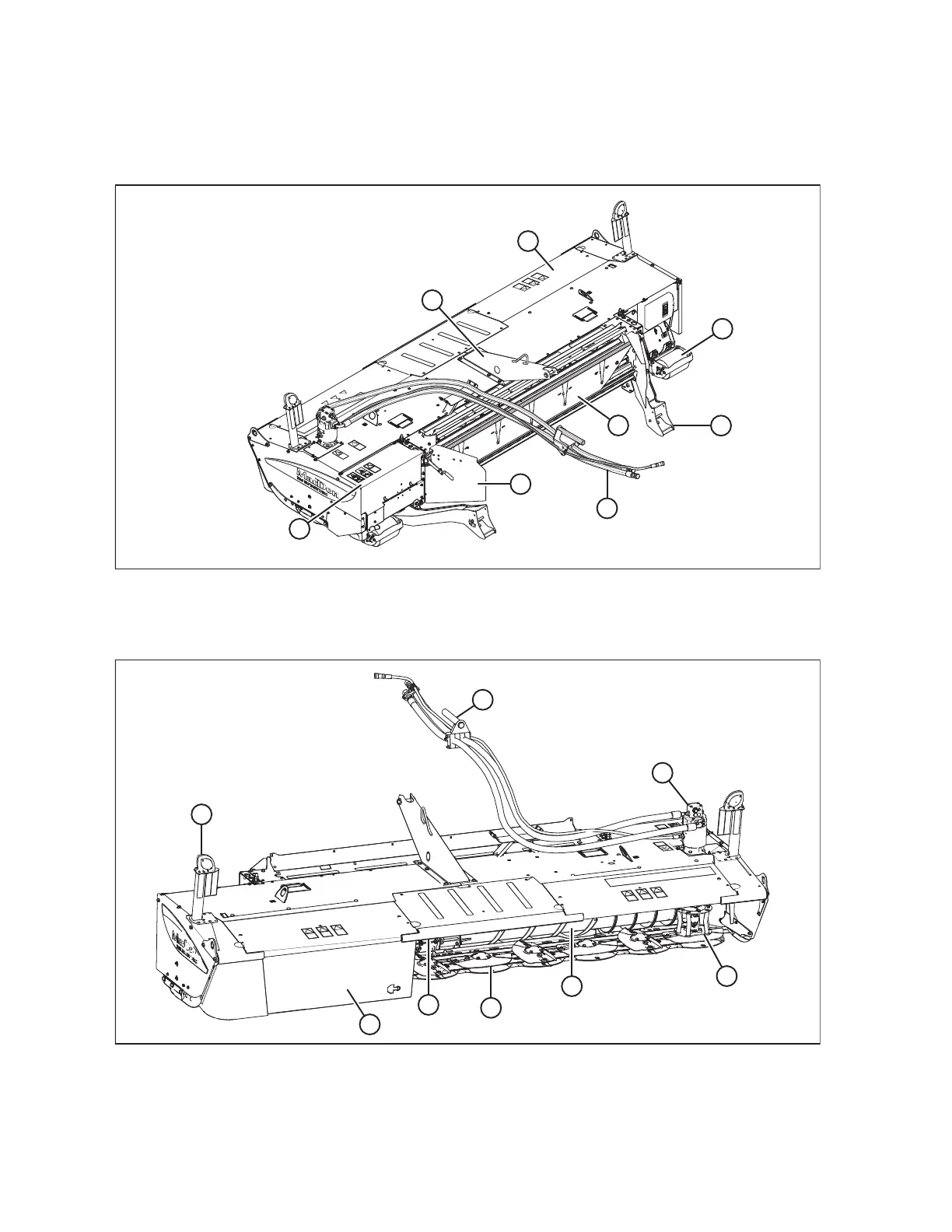

Figure 2.1: Component Identification
1023005
A
B
C
D
E
F
G
H
A - Driveshield B - Tower C - Door D - Gauge Rollers (Optional)
E - Baffle F - Hydraulic Hoses to Windrower G - Baffle Control H - Header Boot
Figure 2.2: Component Identification
1023006
A
B
C
D
E
F
G
H
A - Transport Light B - Conditioner Rolls C - Hose Support D - Drive Motor
E - Rotary Deflector F - Overshot Auger G - 10-Disc Cutterbar H - Curtains
PRODUCT OVERVIEW
