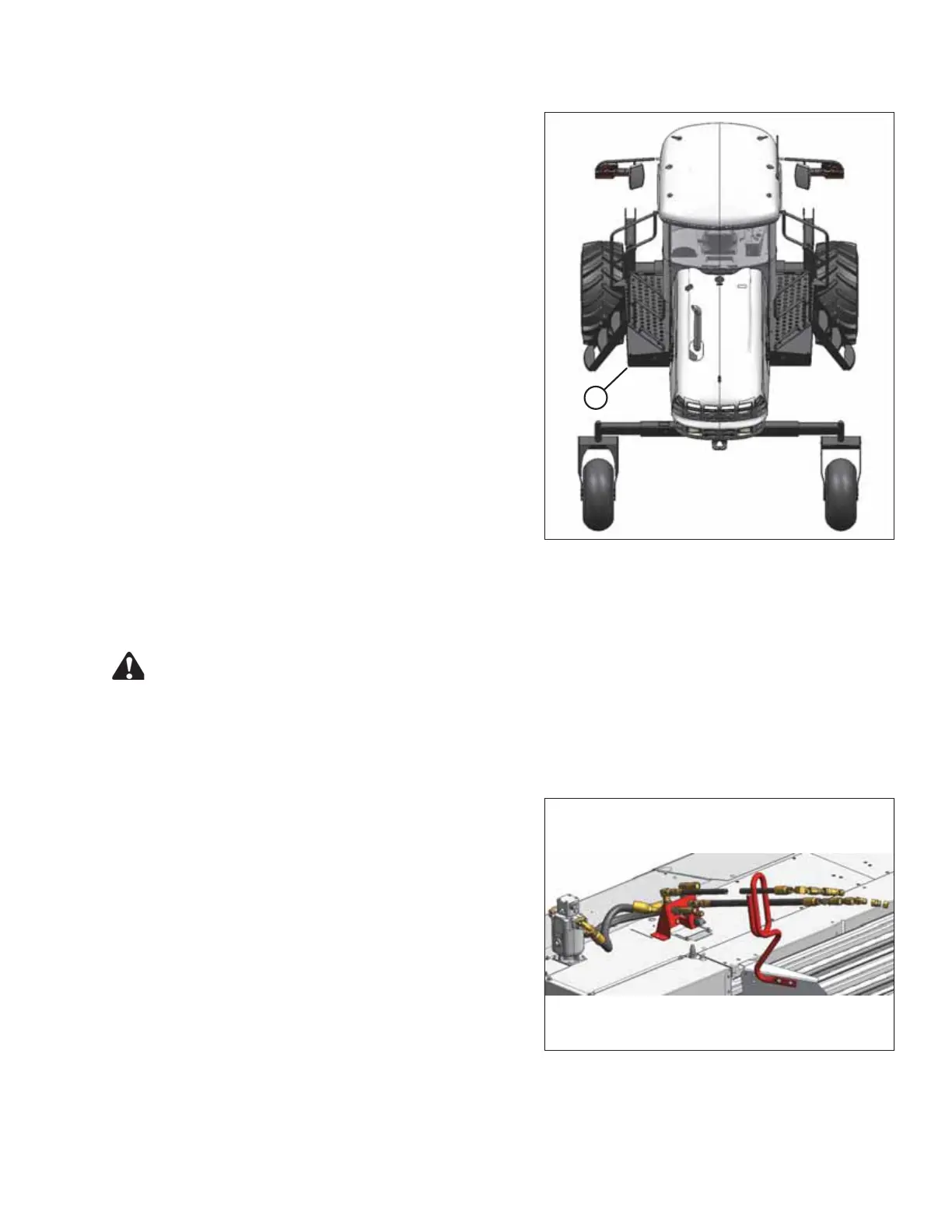

Figure 3.43: Windrower with Left Platform in
Closed Position
6. Move windrower platform (A) to the CLOSED position.
For instructions, refer to the windrower operator’s
manual.
3.7.4 Attaching Hydraulic and Electrical Components: M200 Windrowers
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
Refer to 3.7 Attaching the Header, page 41 for procedure to mechanically attach the header to the windrower. Refer
to the following procedures for electrical and hydraulic connections:
1006058
Figure 3.44: MD #B5455 Hydraulic Drive Kit
IMPORTANT:
To operate the 4.9-meter (16-foot) header on an M200
windrower, a hydraulic drive kit (MD #B5455) is required.
Install kit in accordance with the supplied kit instructions.
