214366 50 Revision A
Attaching hydraulics using hard plumbing connections:
1014148
A
A
B
B
C
C
DD
E
F
G

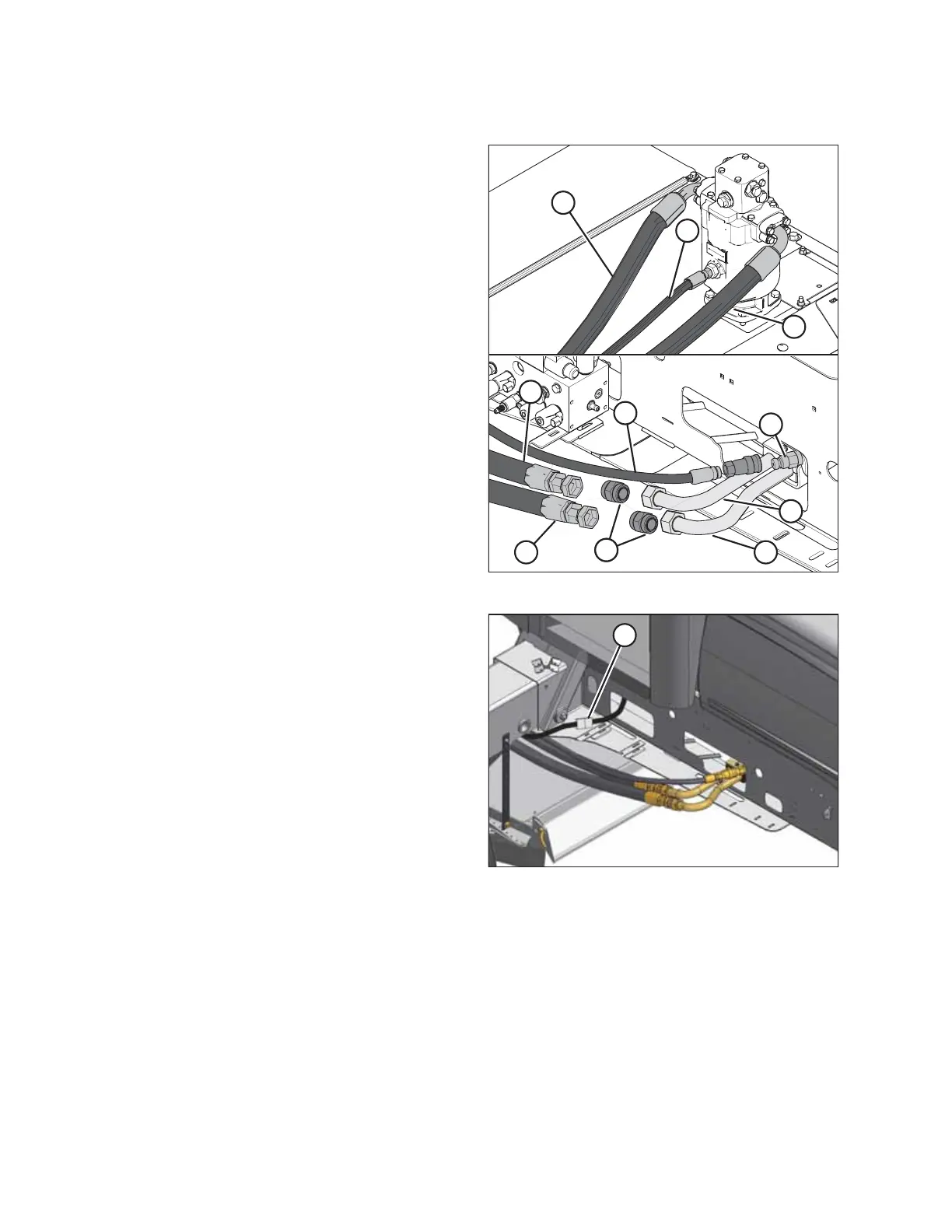

Figure 3.41: Hose Routing and Connections
1. Connect rear pump hose (A) to outboard line (F) on
windrower using fitting (D).
2. Connect front pump hose (B) to inboard line (G) on
windrower using fitting (D).
3. Torque fittings to 183 Nm (135 lbf∙ft).
4. Attach case drain hose and coupler (C) to (E).
1010748
A
Figure 3.42: Electrical Connection (Valve Block
Removed for Clarity)
5. Connect the electrical harness to connector HC-2A (A)
(located beside the forward valve block on the
windrower).
NOTE:
The R85 disc header ships with a factory-installed
electrical harness extension for compatibility with
M1240 windrowers. Remove the extension from the
electrical harness before connecting to the M205
windrower.
OPERATION
To Next Page
