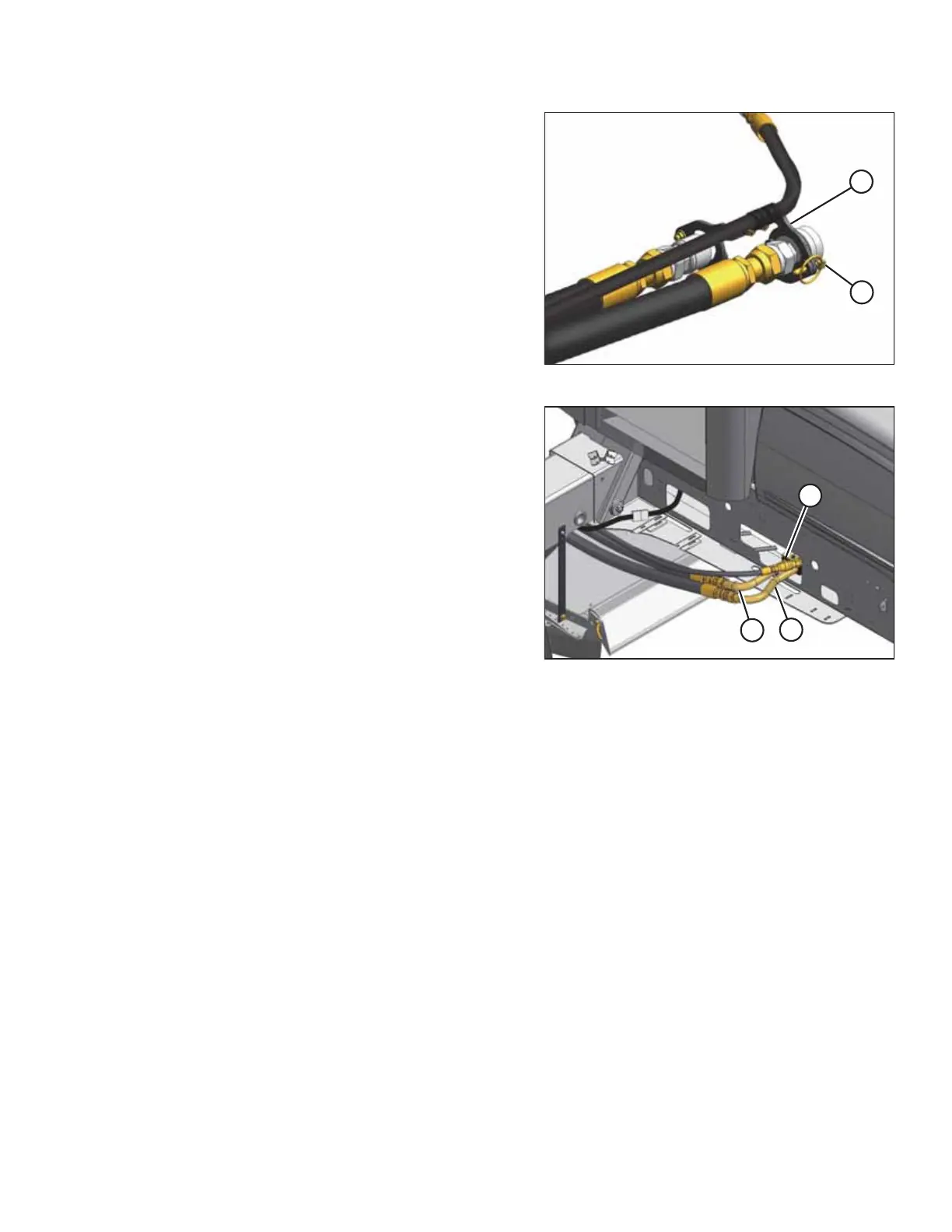

Figure 3.92: Hydraulic Connections
11. Attach coupler lock (B) to hoses and secure with lynch
pin (A).
12. Proceed to Step 14, page 74.
1005209
A
B
C
Figure 3.93: Hydraulic Connections
13. Disconnect hoses from lines (A), (B), and (C) on
windrower. Install caps and plugs on open lines.
