214366 72 Revision A
1005191
A
B

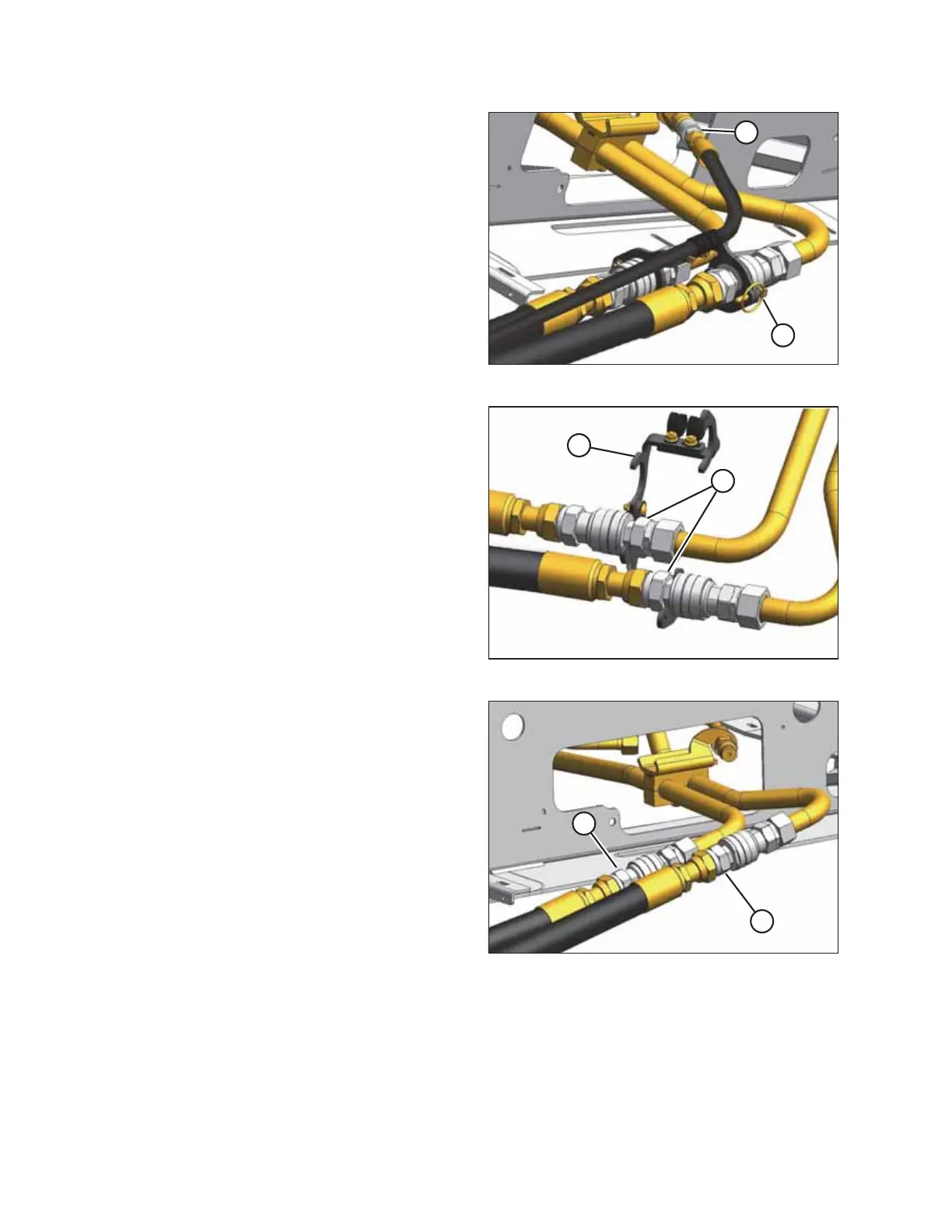

Figure 3.89: Hydraulic Connections
6. Disconnect 12.7 mm (1/2 in.) hose (B) from windrower
coupler and remove lynch pin (A).
1005207
A
B
Figure 3.90: Hydraulic Connections
7. Open coupler lock (A).
8. Remove lock from couplers (B).
1005188
A
A
Figure 3.91: Hydraulic Connections
9. Unscrew sleeves (A) on couplers and
separate couplers.
10. Install caps and plugs on open lines.
OPERATION
