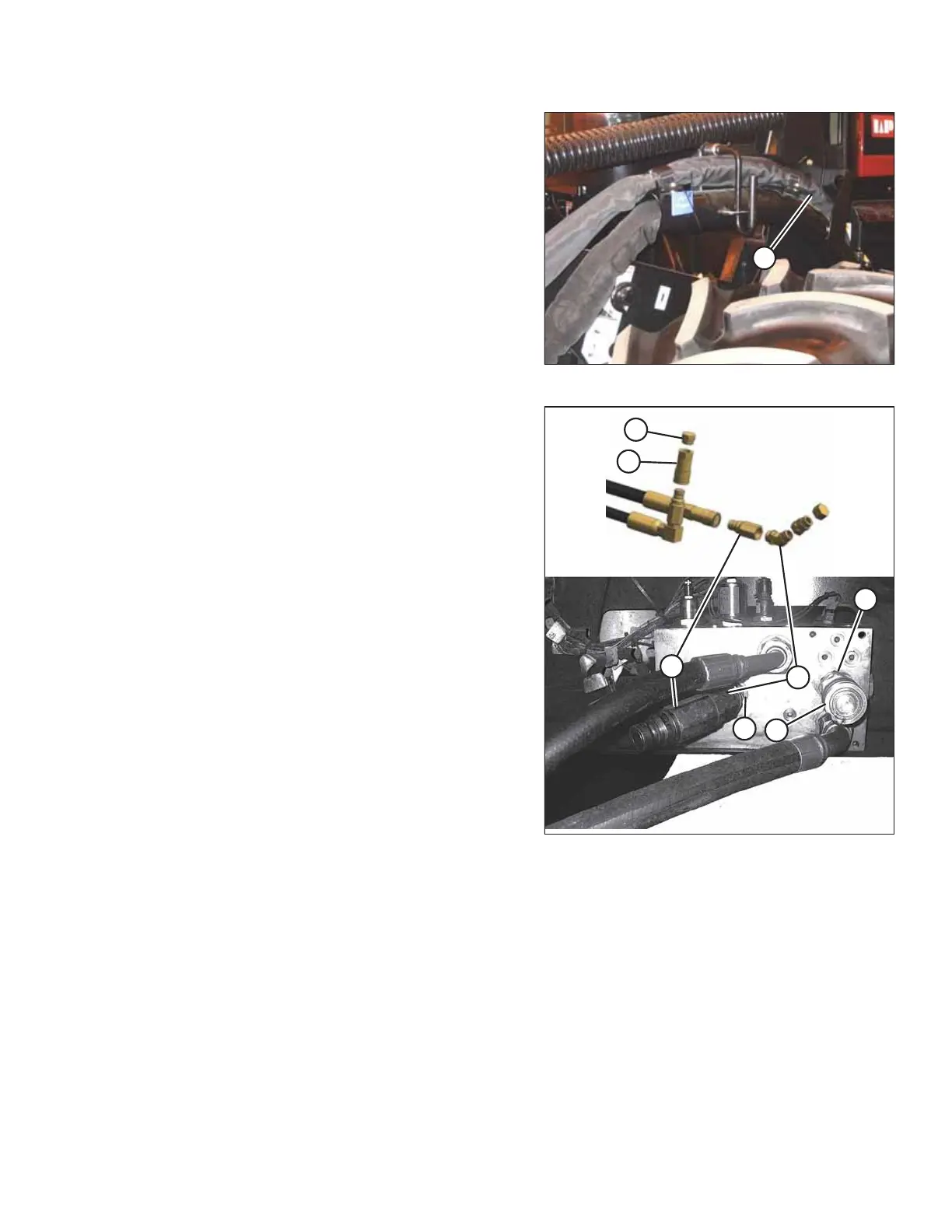

Figure 3.52: Hose Bundle
12. Disconnect fittings at end of hose bundle (A).
Discard caps.
1006078
A
B
C
C
D
E
F
Figure 3.53: Hydraulic Connections
13. Remove O-ring (A) from cap and install over JIC
threads on fitting at return port (B).
14. Install female coupler (C) from hose in return port (B).
15. Install male 45° fitting (D) and male coupler (E) from
hose in pressure port (F).
NOTE:
Male fitting and coupler may need to be disassembled
prior to installing on valve block.
