214366 54 Revision A
1005185
A

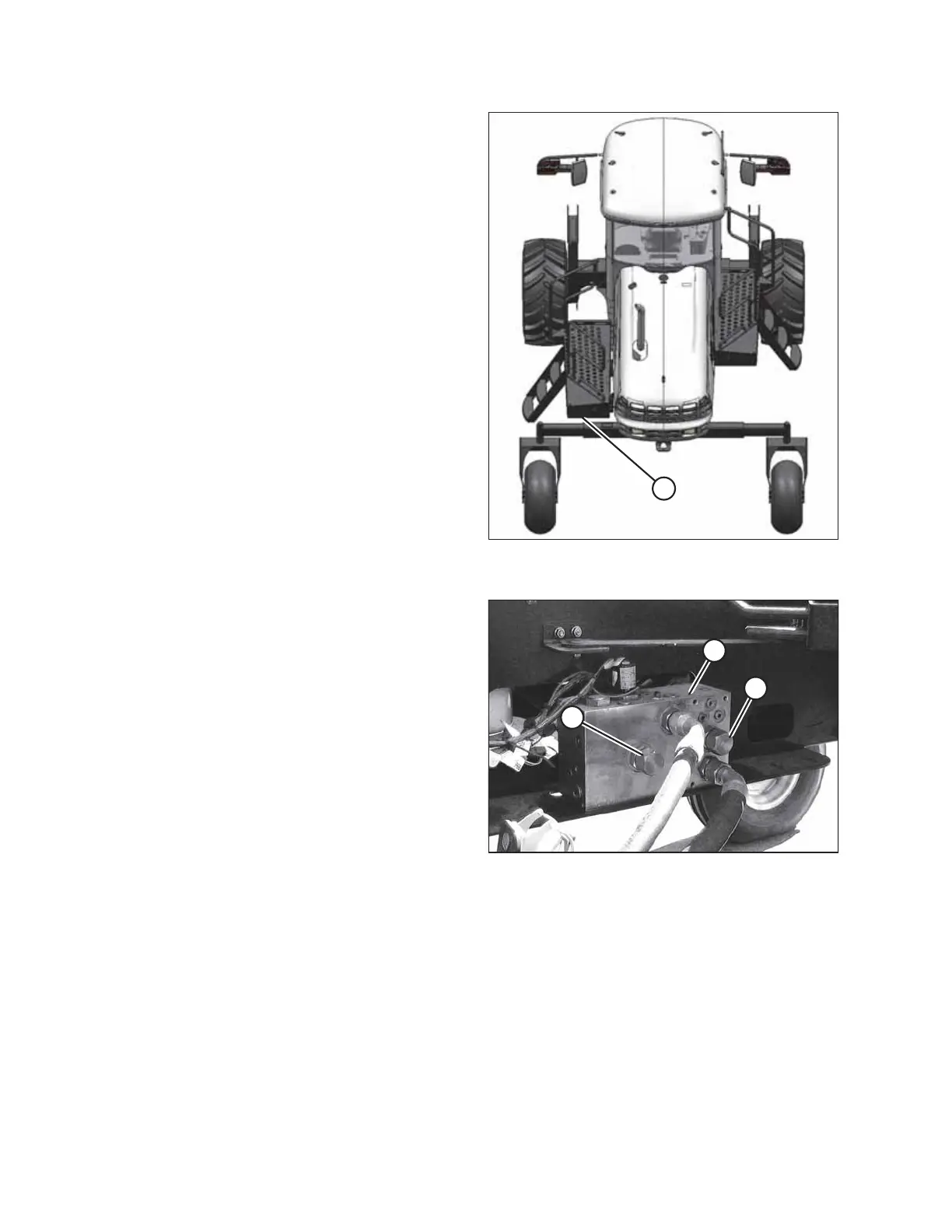

Figure 3.50: Windrower with Left Platform in
Open Position
9. Move the windrower’s left side (cab-forward)
platform (A) to the OPEN position to access the
valve blocks.
1006074
A
B
C
Figure 3.51: Hydraulic Connections
10. Remove caps from pressure (A) and return (B) ports on
valve (C) and discard.
IMPORTANT:
Keep open lines and ports clean.
11. Remove fitting at pressure port (A) and discard.
OPERATION
