214366 53 Revision A
1005197
A

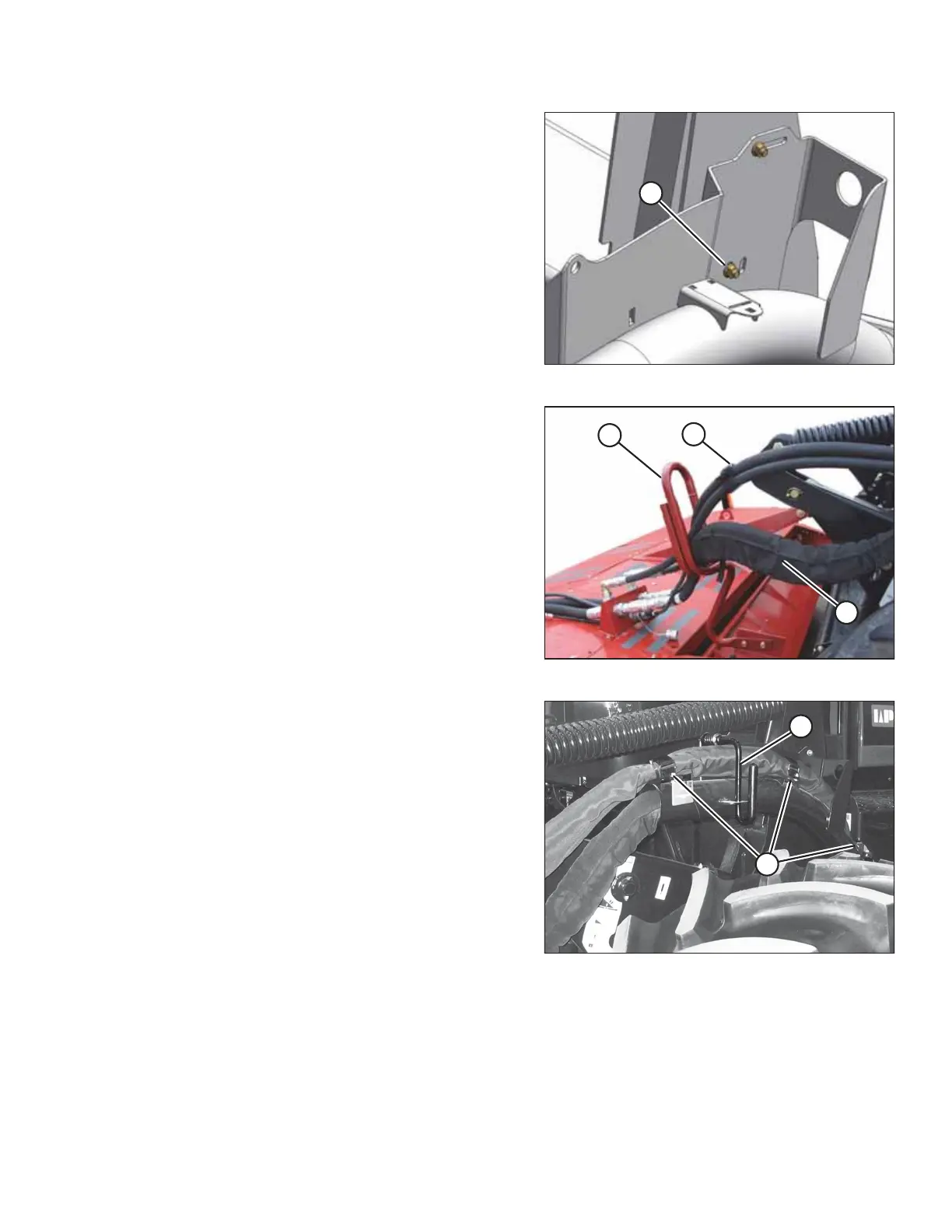

Figure 3.47: Hose Support
4. Position the hose support with lower bolt (A) in the
forward hole, as shown. Loosen both bolts and adjust
as required.
1005198
A
B
C
Figure 3.48: Hose Bundle
5. Route hose bundle (A) from the windrower through
support (B) on header.
6. Route header return and pressure hose bundle (C)
through support (B) on header to the windrower.
1005199
A
B
Figure 3.49: Hose Bundle
7. Secure hose bundles with three cinch straps (B).
8. Lower and lock lever (A).
OPERATION
