214366 133 Revision A

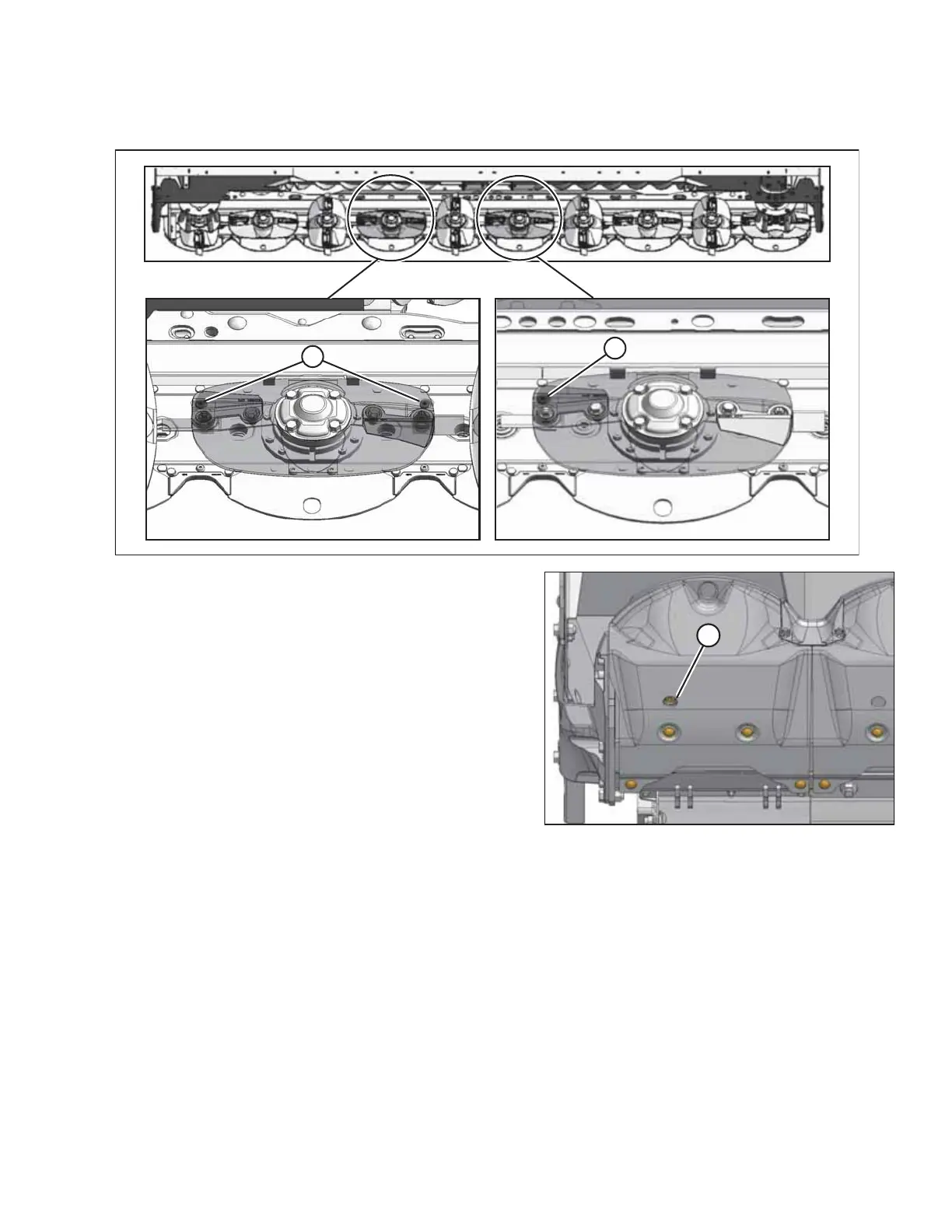

Figure 5.4: Cutterbar Filler Plug Locations
1004635
A
A
1004638
A
Figure 5.5: Cutterbar Lubricant Drain
7. Clean around either filler plug (A) and remove one plug
with an 8 mm hex key.
NOTE:
Rotate disc to expose filler plug if necessary.
8. Place a suitably sized container under the cutterbar
drain hole (A). Refer tofor cutterbar lubricant capacity.
9. Remove plug (A) with an 8 mm hex key and allow
sufficient time for lubricant to drain.
IMPORTANT:
Do NOT flush the cutterbar.
10. Replace drain plug (A) and tighten.
11. Safely dispose of lubricant.
12. Add lubricant. Refer to Filling the Cutterbar Lubricant, page 134.
MAINTENANCE AND SERVICING
