214366 42 Revision A
1005182
A
B

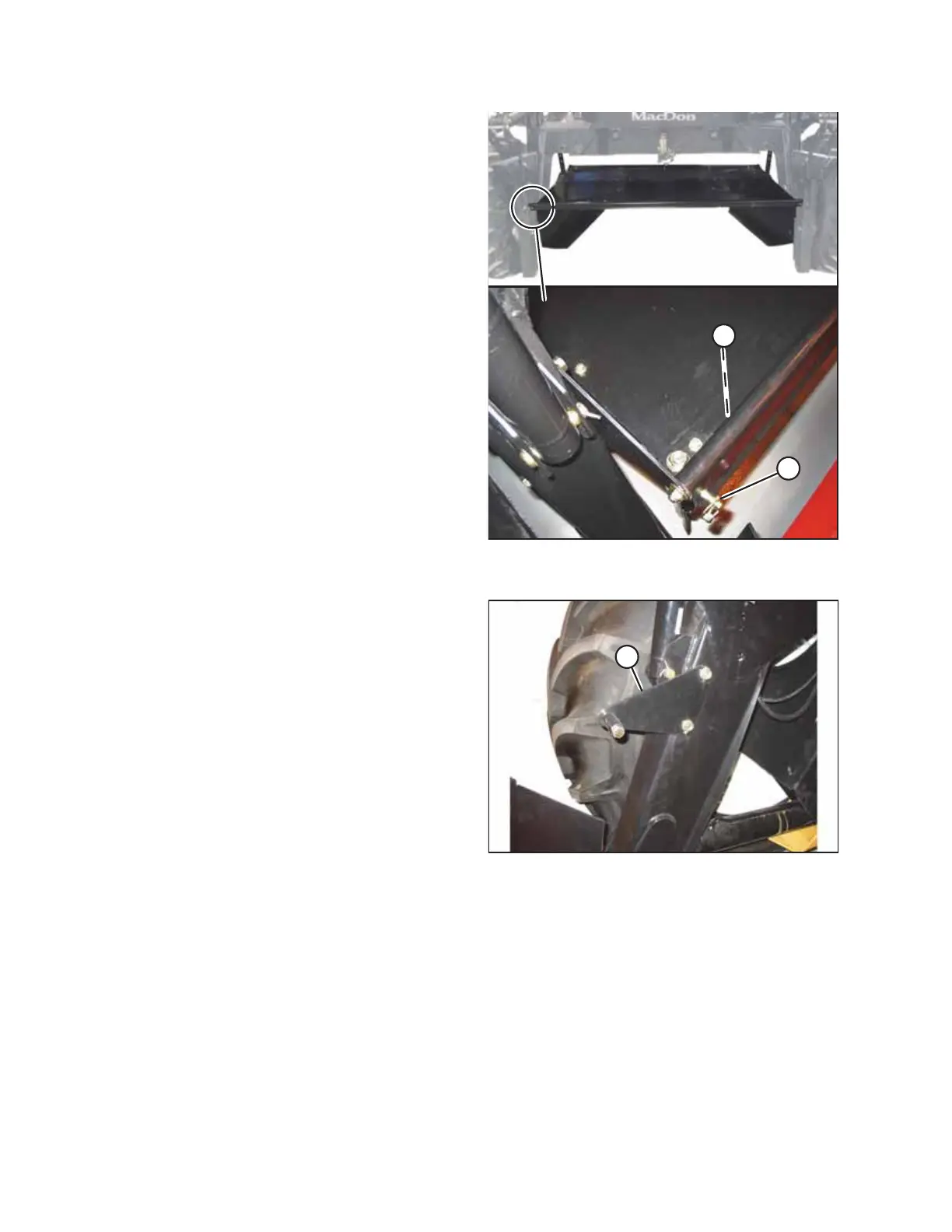

Figure 3.24: Attaching Forming Shield to
Windrower Legs
4. Position the forming shield onto spacers (B) on
windrower legs. Secure with clevis pins (A) and
lynch pin.
1018579
A
Figure 3.25: Forming Shield under
Windrower Frame
IMPORTANT:
Forming shield plate (A) is shown in standard position. If
installing double windrow attachment (DWA), install plate
in inverted position.
