MacDon R85 - Page 60

214366 43 Revision A
1005067
A
B

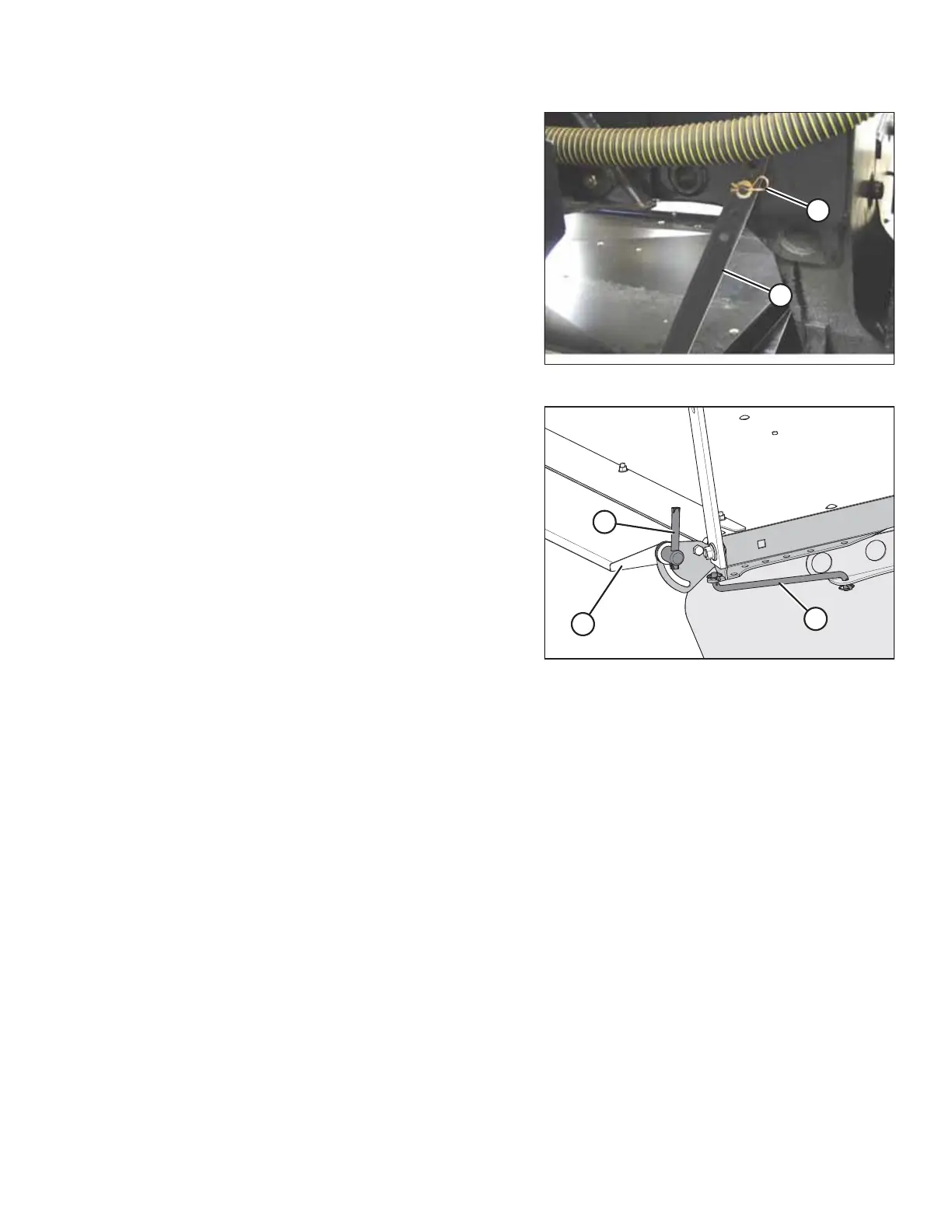

Figure 3.26: Forming Shield Strap
6. Lift the aft end of the forming shield and attach
straps (B) to pins (A) on the windrower frame.
7. Install washer and hairpin to secure strap. Use the
middle hole and adjust height to suit the crop.
1018398
A
B
C
Figure 3.27: Forming Shield Adjuster Bar
8. Set the forming shield side deflectors to the desired
width by repositioning adjuster bars (A). Use the same
hole location on both sides.
9. Adjust rear fluffer deflector (C) to the middle position.
Loosen handles (B) if required.
10. Attach the R85 header to the windrower. Refer to the
windrower operator’s manual for instructions, and then
return to this manual to complete the attachment.
11. Connect the hydraulics and electrical harness.
• For M1240, refer to 3.7.6 Attaching Hydraulic and
Electrical Components: M1240 Windrowers, page
62.
• For M205, refer to 3.7.3 Attaching Hydraulic and
Electrical Components: M205 Windrowers, page 45.
• For M200, refer to 3.7.4 Attaching Hydraulic and
Electrical Components: M200 Windrowers, page 51.
OPERATION
