214366 115 Revision A
1004571
A

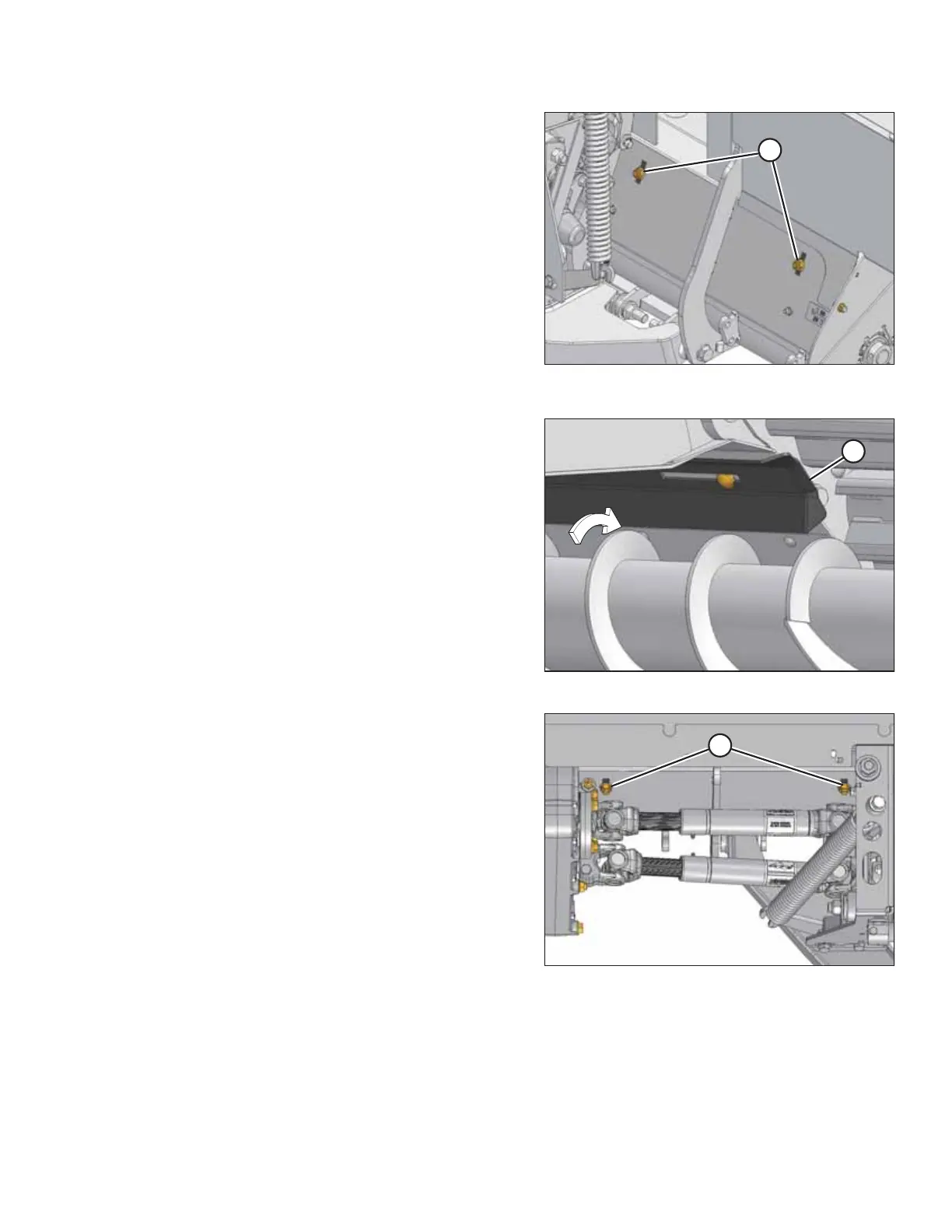

Figure 4.50: Right End
1004572
A
Figure 4.51: Stripper Bar
6. Position stripper bar (A) as close as possible to auger
flighting without contacting it.
7. Repeat Steps 5, page 114 and 6, page 115 for
opposite side.
8. Manually rotate auger to check that auger does NOT
contact stripper bars. Readjust as required.
1004570
A
Figure 4.52: Left End
9. Tighten nuts (A).
NOTE:
Right side and left side stripper bars are
interchangeable. Each stripper bar can be flipped when
one bar wears out or becomes damaged.
OPERATING THE HEADER
