214366 143 Revision A
1008430
A
B
C
D
D
E
E

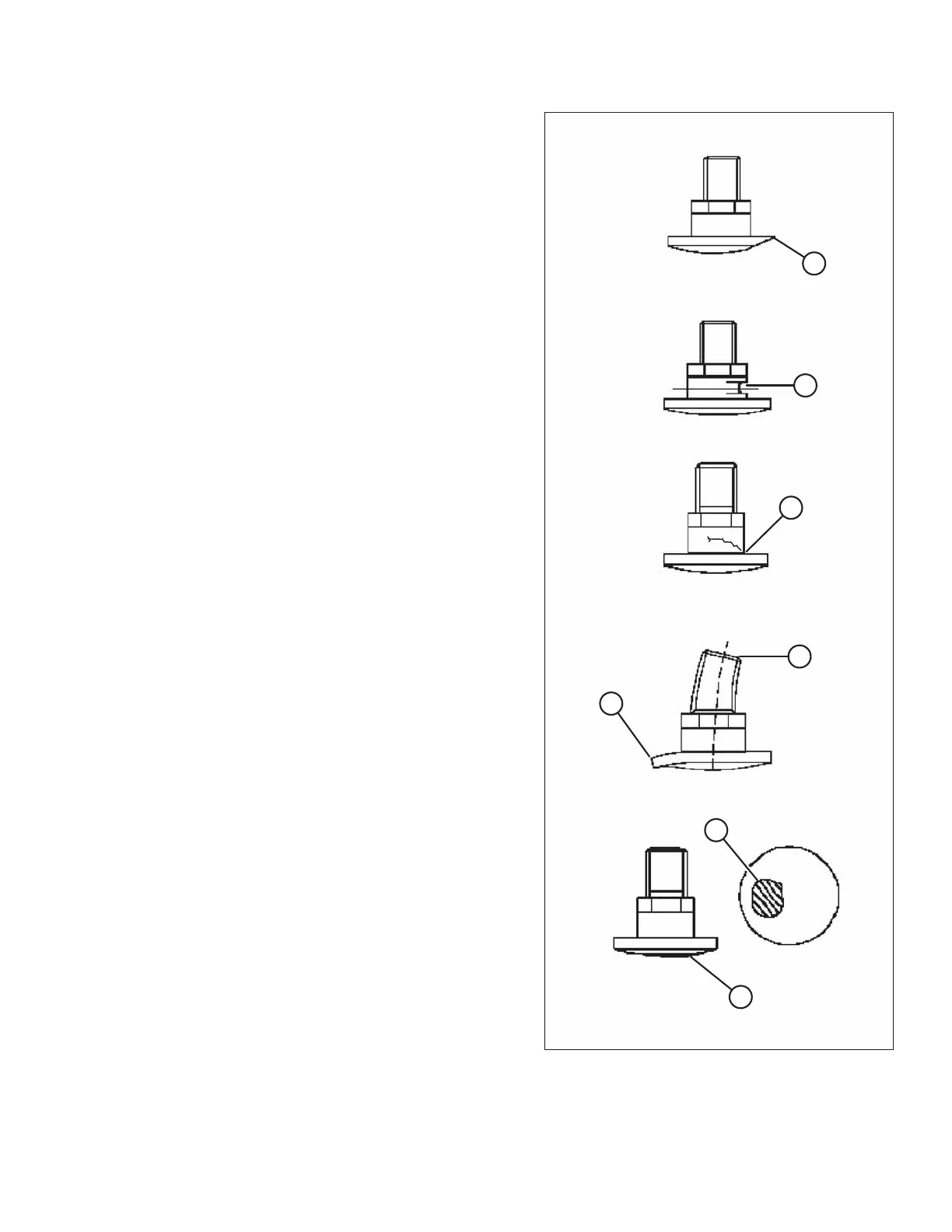

Figure 5.19: Cutterblade Bolt
Check blade attachment hardware each time blades are
changed. Refer to Replacing the Cutterblades, page 144 for
hardware replacement procedure.
Check bolts and replace bolt if:
• Bolt has been removed and installed five times
• Head (A) is worn flush with bearing surface of blade
• Diameter of bolt neck is worn (B) 3 mm (1/8 in.)
• Bolt is cracked (C)
• Bolt is visibly distorted (D)
• There is evidence of interference (E) with adjacent parts
MAINTENANCE AND SERVICING
