214366 161 Revision A
1004702
A
B

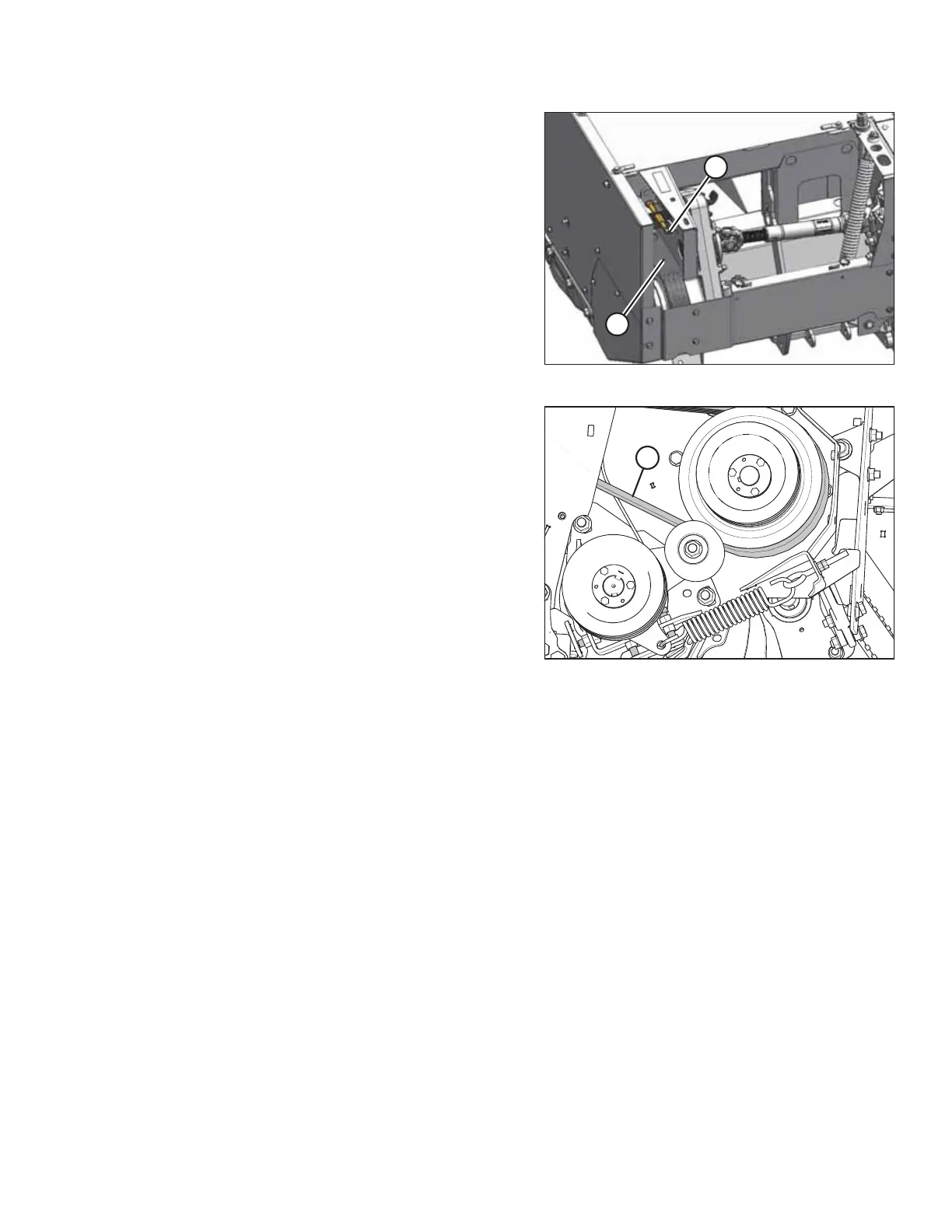

Figure 5.51: Drive Belts (Left Side)
5. Turn adjuster nut (A) counterclockwise until springs are
loose and there is no tension on belt (B).
1006450
A
Figure 5.52: Drive Belts (Left Side)
6. Remove conditioner drive belt (A).
7. Install new conditioner drive belt (A) onto pulleys
ensuring it is in the pulley grooves.
8. Tension conditioner drive belt (A). Refer to Inspecting
the Conditioner Drive Belt, page 159.
9. Install and tension auger drive belts. Refer to Replacing
the Auger Drive Belts, page 167.
10. Close the driveshield. Refer to 3.4 Driveshields, page
30.
MAINTENANCE AND SERVICING
To Next Page
