OPERATION105

OverFlatTerrain

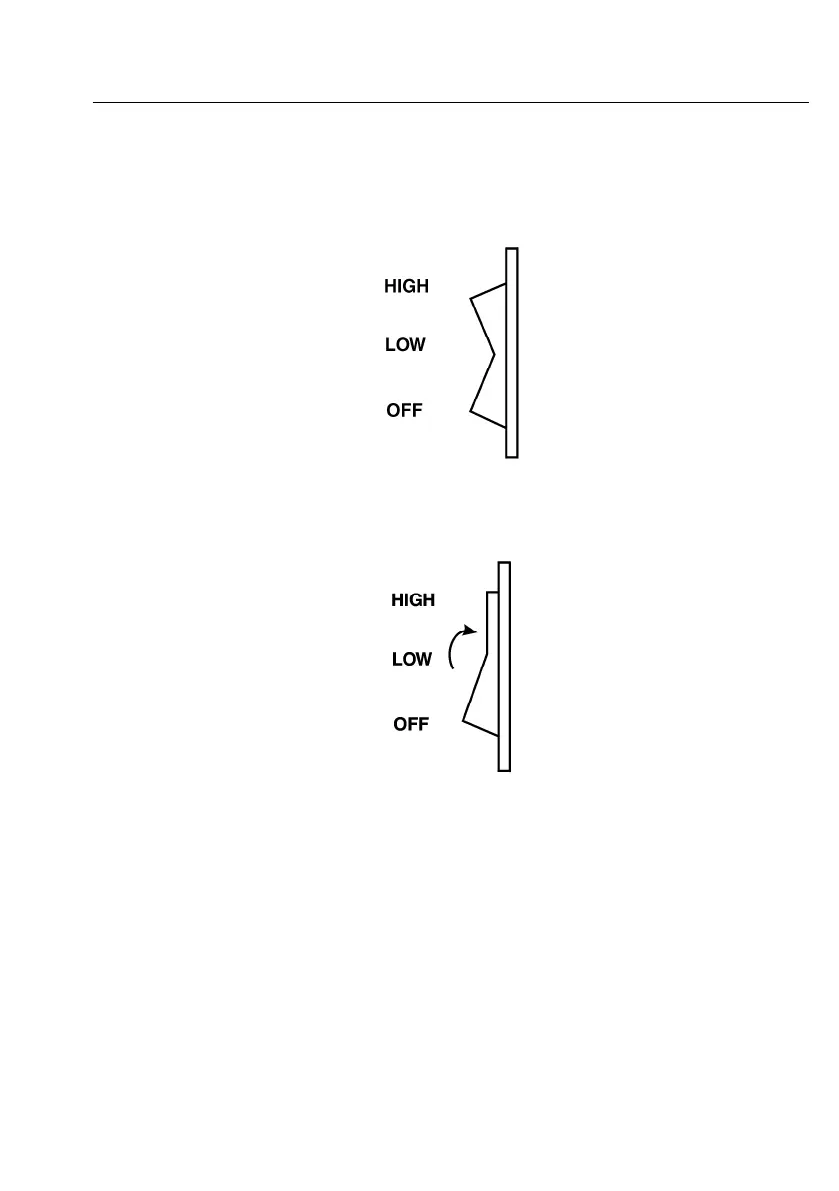

TheLOWpowerpositionislikelyadequatetocontrolvehiclespeedinsituationswhere

theroadwayisrelativelyatorhasmodestlygradedrollinghills,andiftotalvehicle

weightislight.

C0032887

Asgradesandvehicleweightincrease,itwillbenecessarytousetheHIGHposition.

C0032888
