74INSTRUMENTSANDCONTROLS

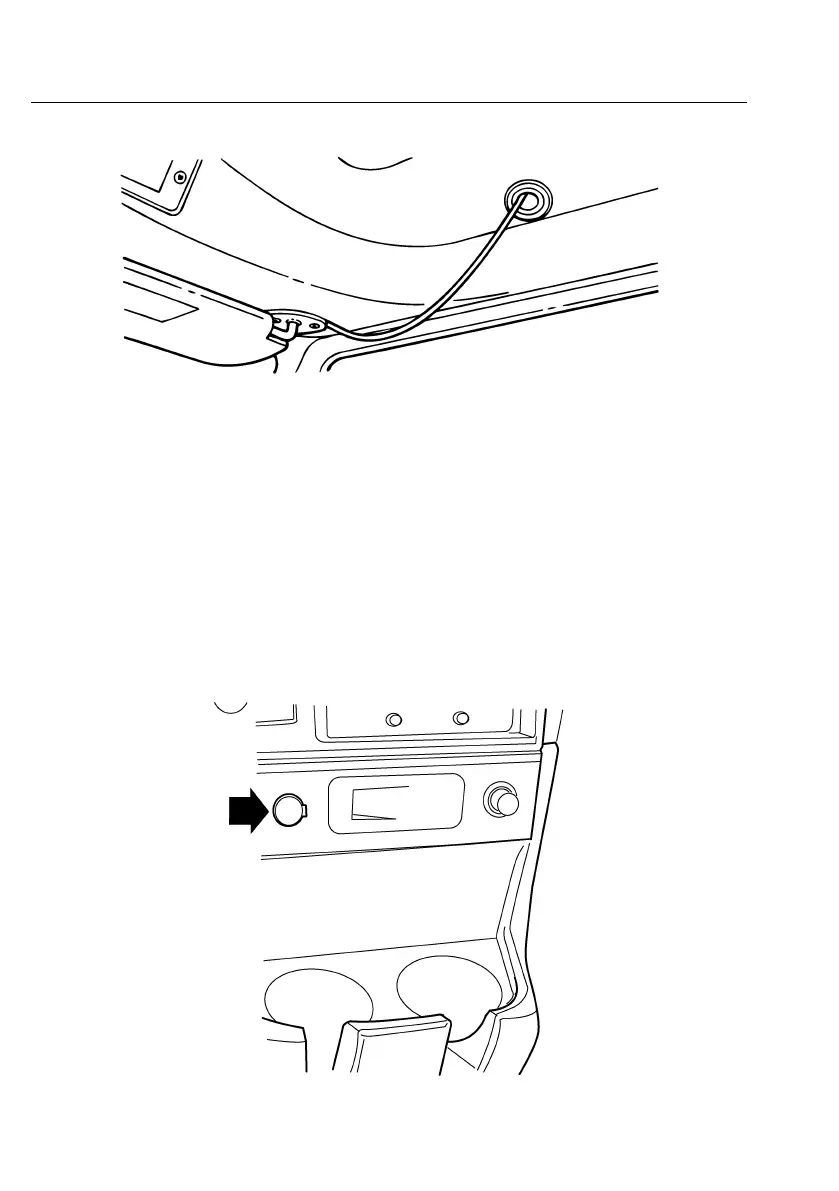

AirHorn

C0032871

Theairhorn(s),ifequipped,isactivatedbypullingdownonthecordthatislocatedabove

thedriverneartheoverheadconsole.

AccessoryPowerOutlets

Additional12-voltaccessorypoweroutletsarelocatedonthedashboard.Oneislocated

nexttotheradioandtheotherislocatedbelowtheradio(seeguresbelow).Thesecigar

light-typeoutletssupply12voltsoffused(20A)powerwhentheignitionswitchisturnedto

theignitionoraccessoryposition.

C0032872
