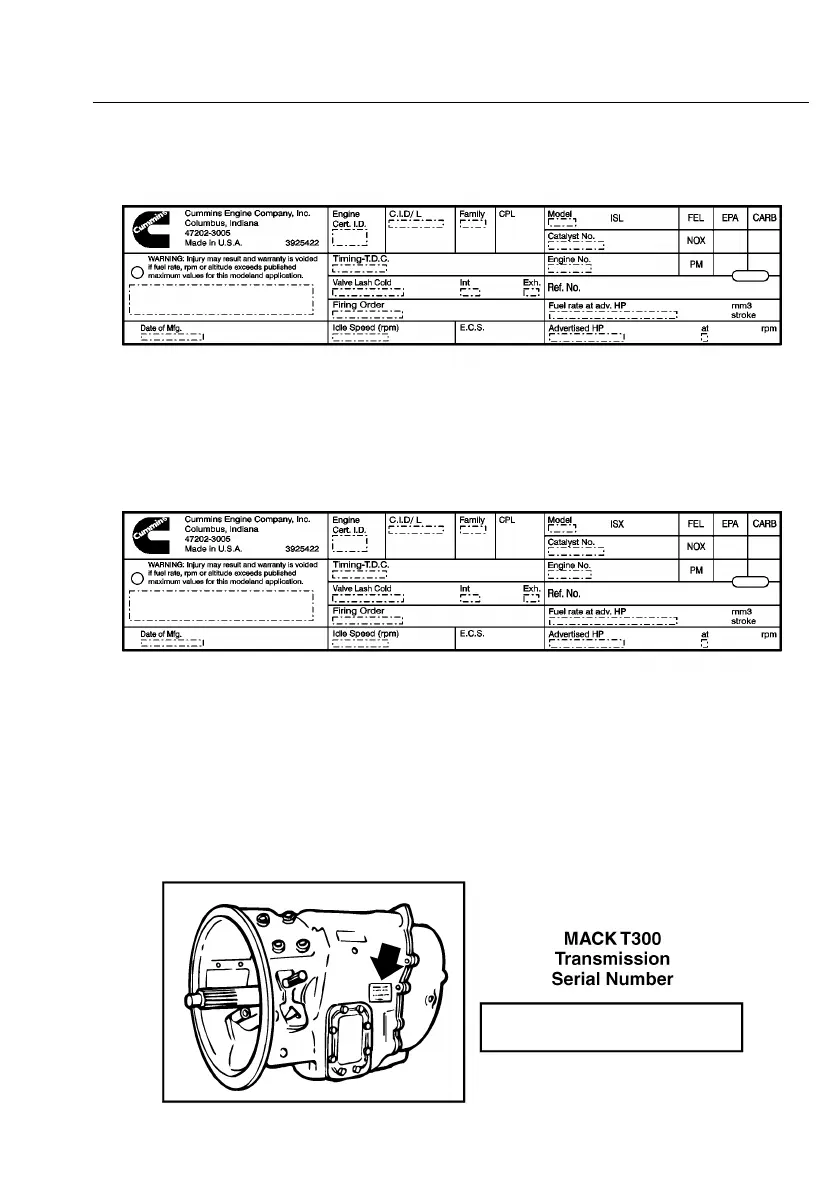

INTRODUCTION7

OnCummins®ISLengines,theenginedataplateislocatedontheenginerockerlevel

cover,butalsomaybelocatedonthegearhousing.

W8061484

OnCummins®ISXengines,theenginedataplateislocatedontheenginerockerlevel

cover,butalsomaybelocatedonthegearhousing.

W8061485

TransmissionIdentication

TheMACKT300Seriestransmissionserialnumberislocatedontherearleftsideof

themaincase.

C0032623
