204MAINTENANCEANDLUBRICATION

AccessoryDriveBeltRouting

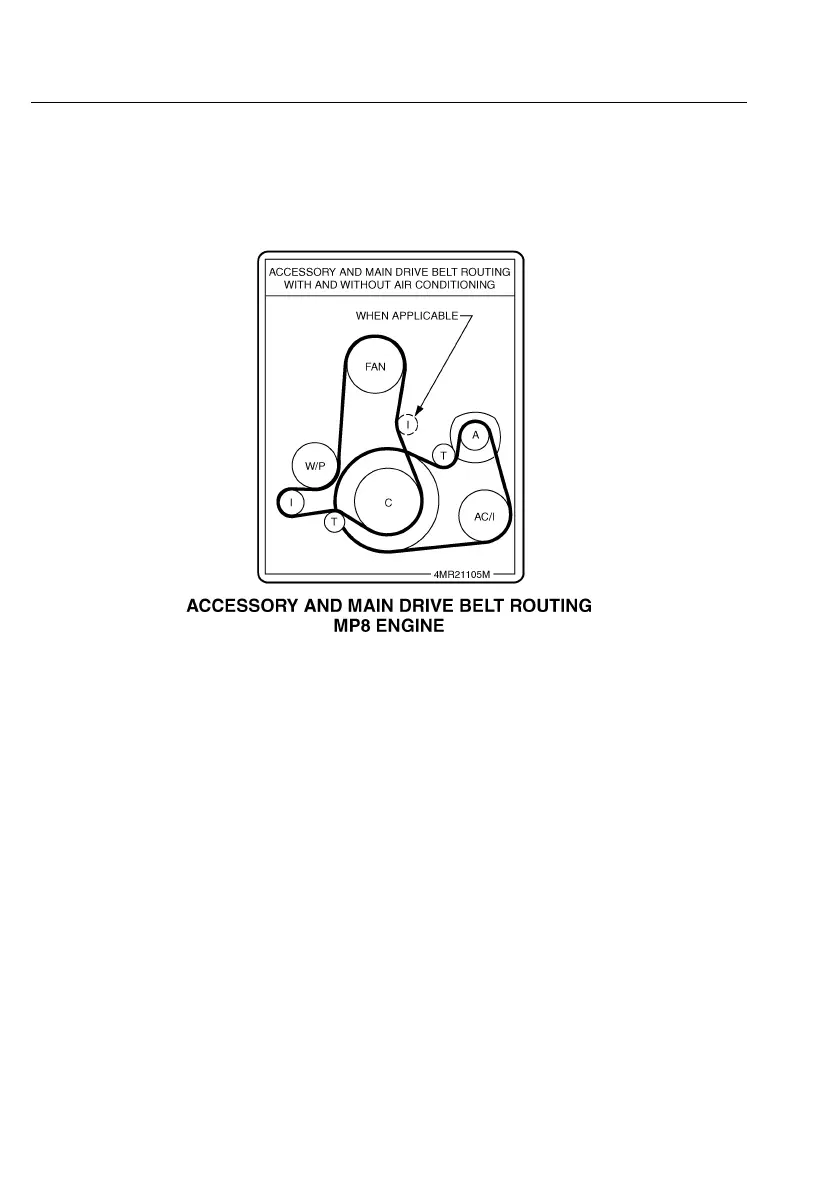

Thefollowingdiagramshowstheaccessorydrivebeltandmainbeltroutingwithand

withoutairconditioning.Thisdiagramislocatedinaclearareaontheoutsideoftheleft

framebetweentheradiatorandcenterlineofthefrontaxle.

C0032904
