72INSTRUMENTSANDCONTROLS

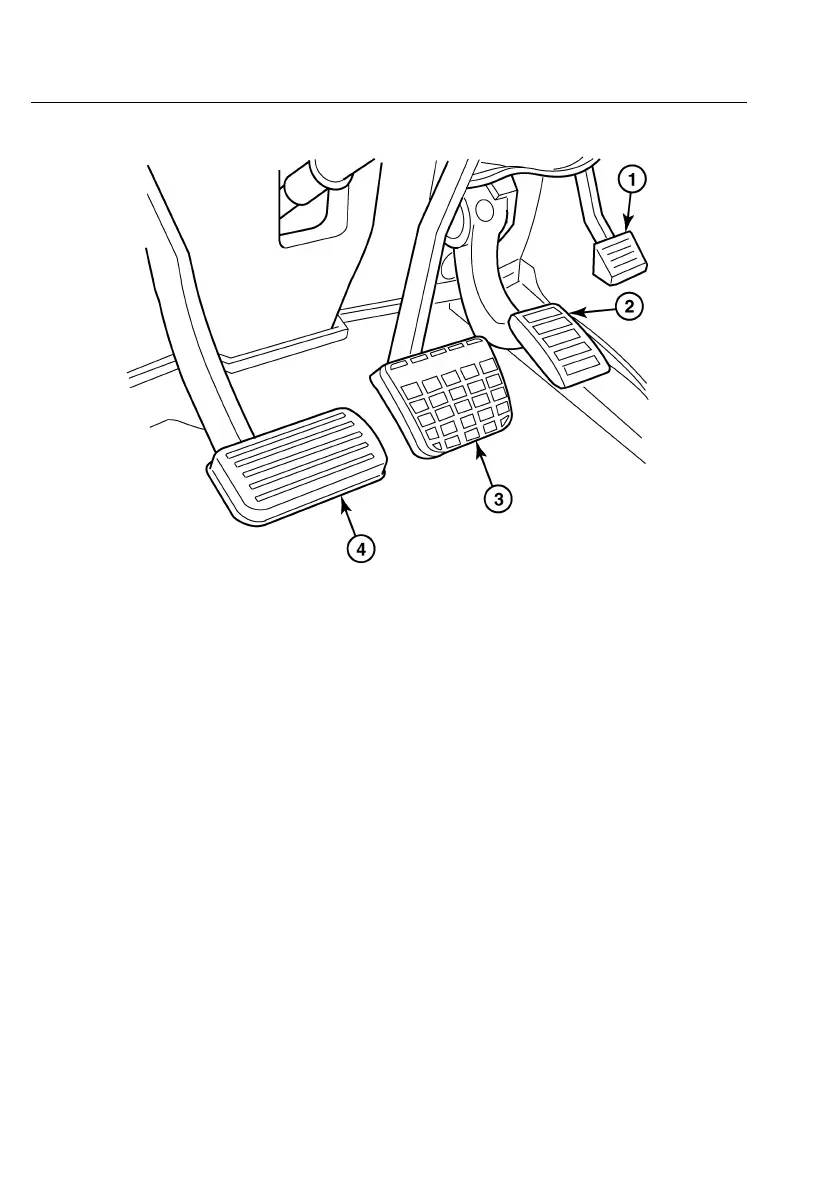

FLOORPEDALS

C0032688

1SteeringWheelAdjustmentPedal—Pushdownonthefootpedaltotiltthewheelto

anypositionbetweenfullytilteduptofullytilteddown.Y oumustholdthepedaldown

whileadjusting.Whentheadjustmentiscomplete,releasethepedal.

2AcceleratorPedal—Depresstoincreaseengine/vehiclespeed;releasetodecrease

engine/vehiclespeed.

3BrakeTreadleValve—Depresstoactivatetheservicebrakes.

4ClutchPedal—Depresstodisengagetheclutch.Theclutchpedalisonlyfoundon

trucksequippedwithmanualtransmissions.
