24SAFETYINFORMATION

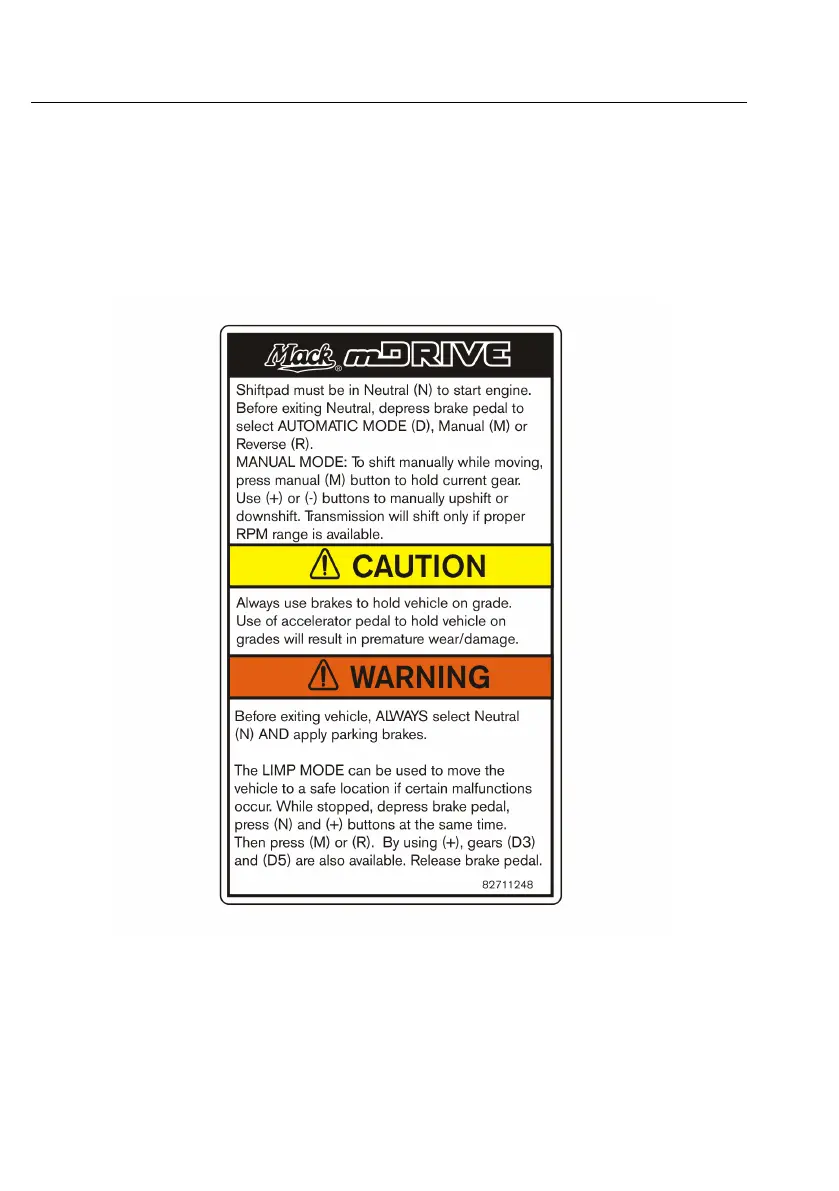

mDRIVETransmissionLabel

ThereisalabelwithoperatinginformationaboutthemDRIVEtransmissionlocatedonthe

dash,nexttothemDRIVEgearselector.Itisextremelyimportantthatthisinformationis

readandunderstoodbeforethevehicleisoperated.

Note:ForAustralianvehicles,theoperatinginformationlabelislocatedonthedriver’s

sidesunvisor.

W4059435

mDRIVETransmissionLabel,PremiumGearSelector
