Mack CSM 2010 - Hood Operation; Opening the Hood

To Next Page

To Previous Page

OPERATION81

HOODOPERATION

OpeningtheHood

C0032875

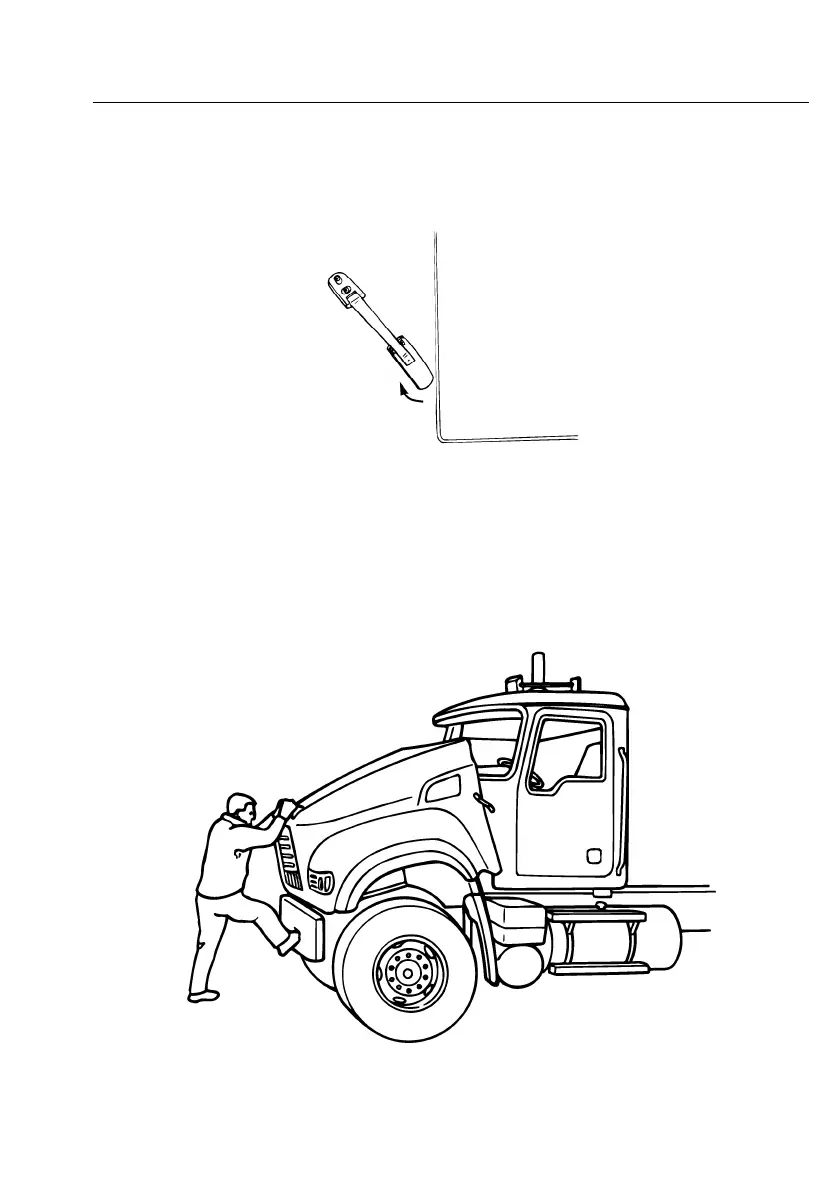

1.Withthehoodinthelockedposition,pulloutwardontheplastichandleanddisengagethe

lockingtabfromthehoodlatch.

2.Swingtherubberstrapupandoutoftheway.

3.Repeatthisprocedureontheothersideofthehood.

Note:Whenthehoodisopened,thesafetylatchwilldropdownintothelockedposition.
