MAINTENANCEANDLUBRICATION205

WHEELS

WheelInspection

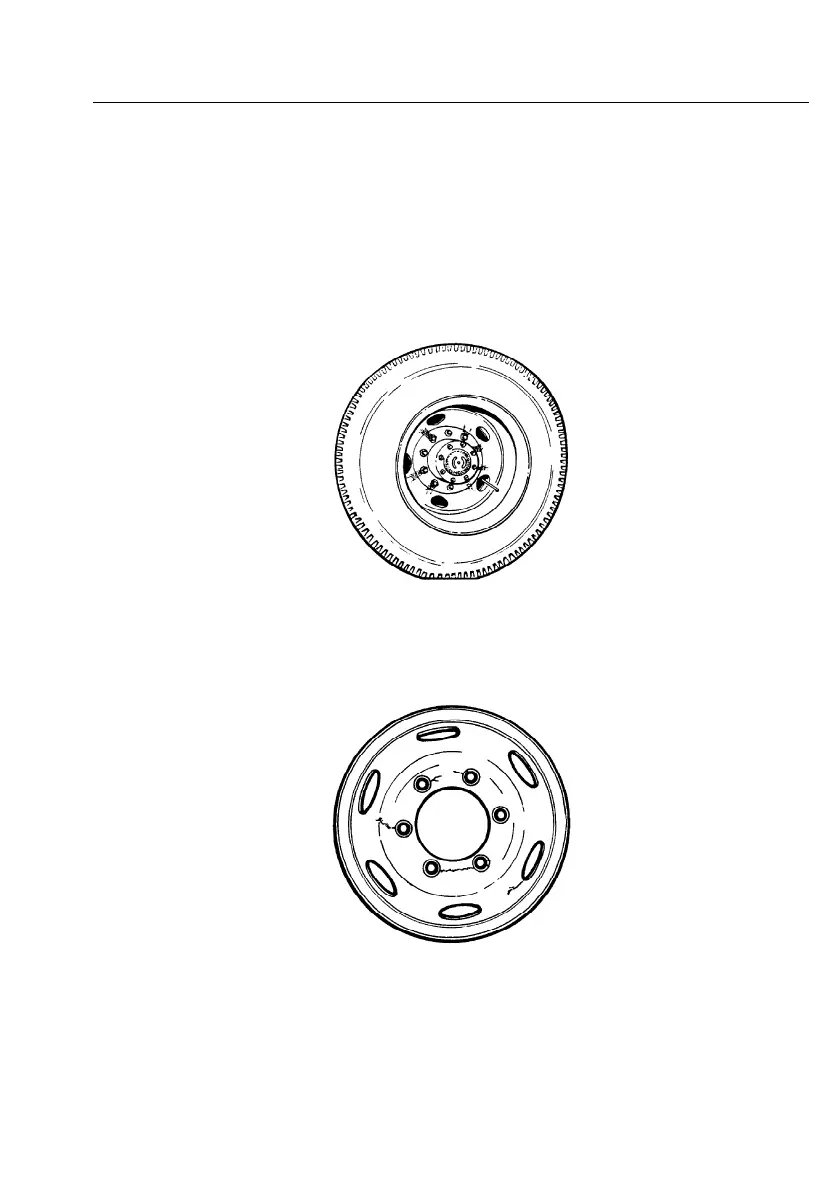

Lookatthewheelsandcapnuts.Inspectthemforevidenceofcapnutlooseness.Rust

streaksfromthecapnutballseatareanindicationoflooseness.RefertotheMaintenance

andLubricationManualforcompleteproceduresconcerningwheelinspectionandwheel

nuttightening.

C0032906

Lookforcracksaroundthehandhole,studholeandwheel.Lookforbrokenstuds,wheel

damageorimproperlyseatedlockrings.

C0032907
