4-77

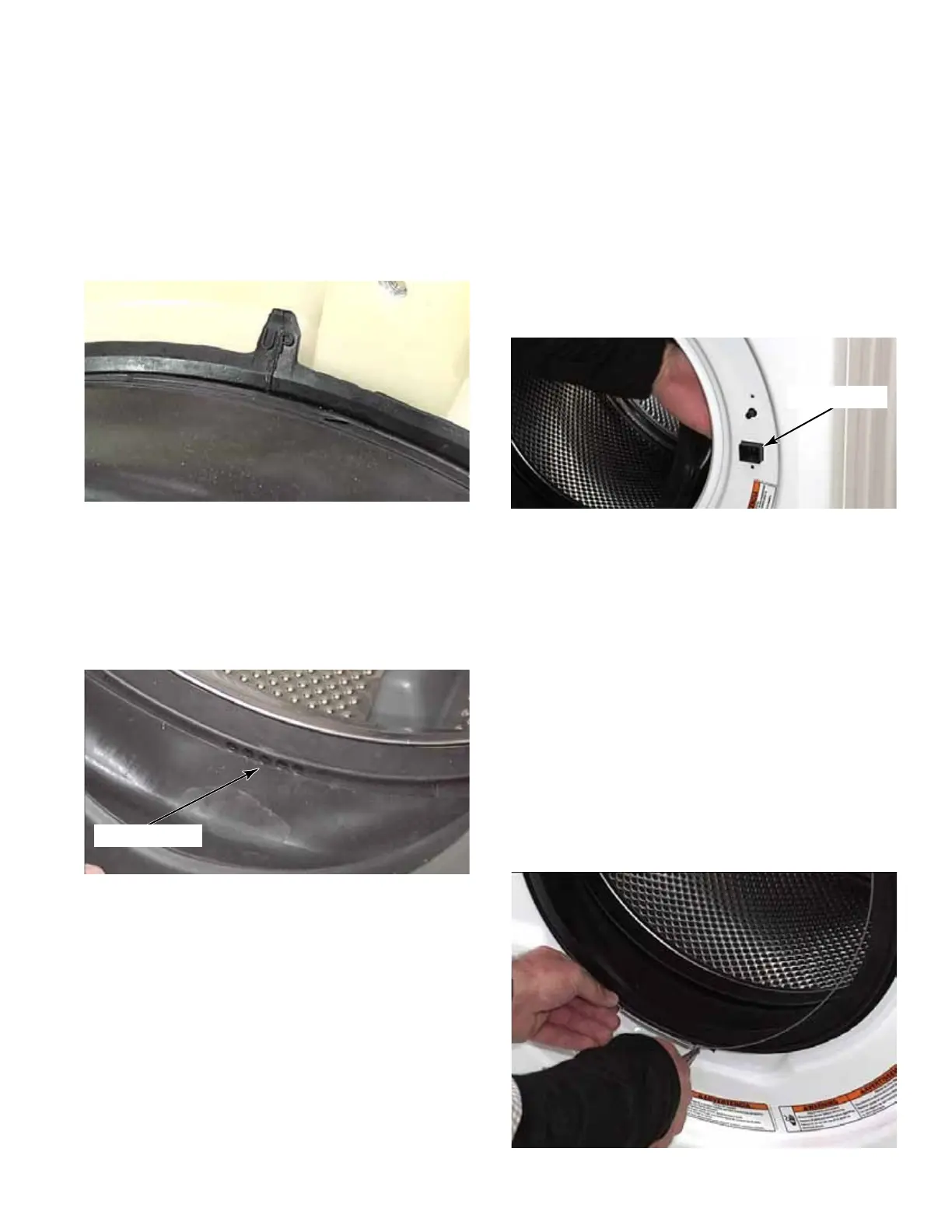

13. Make sure the bellow is not twisted
causing it to distort which may cause
vibrations in spin.
14. After replacing the front panel, reach in
behind the front panel on the right side and
position the door lock in the holes of the
front panel.
15. Reinstall the two screws, removed earlier,
to mount the door lock to the front panel.
16. Pull the bellow out and wrap the lip of the
bellow around the lip of the front panel, all
the way around the opening.
17. Position the bellow clamp in the groove
around the opening of the front panel with
the spring located at the bottom center of
the opening.
18. Use a pair of needle nose pliers in the ring
at one end of the spring. Stretch the spring
and push the clamp over the edge of the lip
around the entire opening. Make sure that it
is held tight all the way around the opening.
6. Reinstalling the bellow on the outer tub is
easier before reinstalling the front weights.
7. The bellow has a tab that says “UP”. Place
this at the top center of the outer tub.
8. Wrap the top of the bellow over the outside
edge of the outer tub, and at the same time
press the inside lip of the bellow between
the outer tub and the spin basket.
9. Make sure the drain holes are positioned at
the bottom center of the washer opening.
10. Place the bellow clamp in the groove of
the bellow all the way around.
11. Position the Phillips head screw on the left
side of the bellow.
12. Tighten the clamp with a Phillips
screwdriver.
Drain Holes
Door Lock
To Next Page
