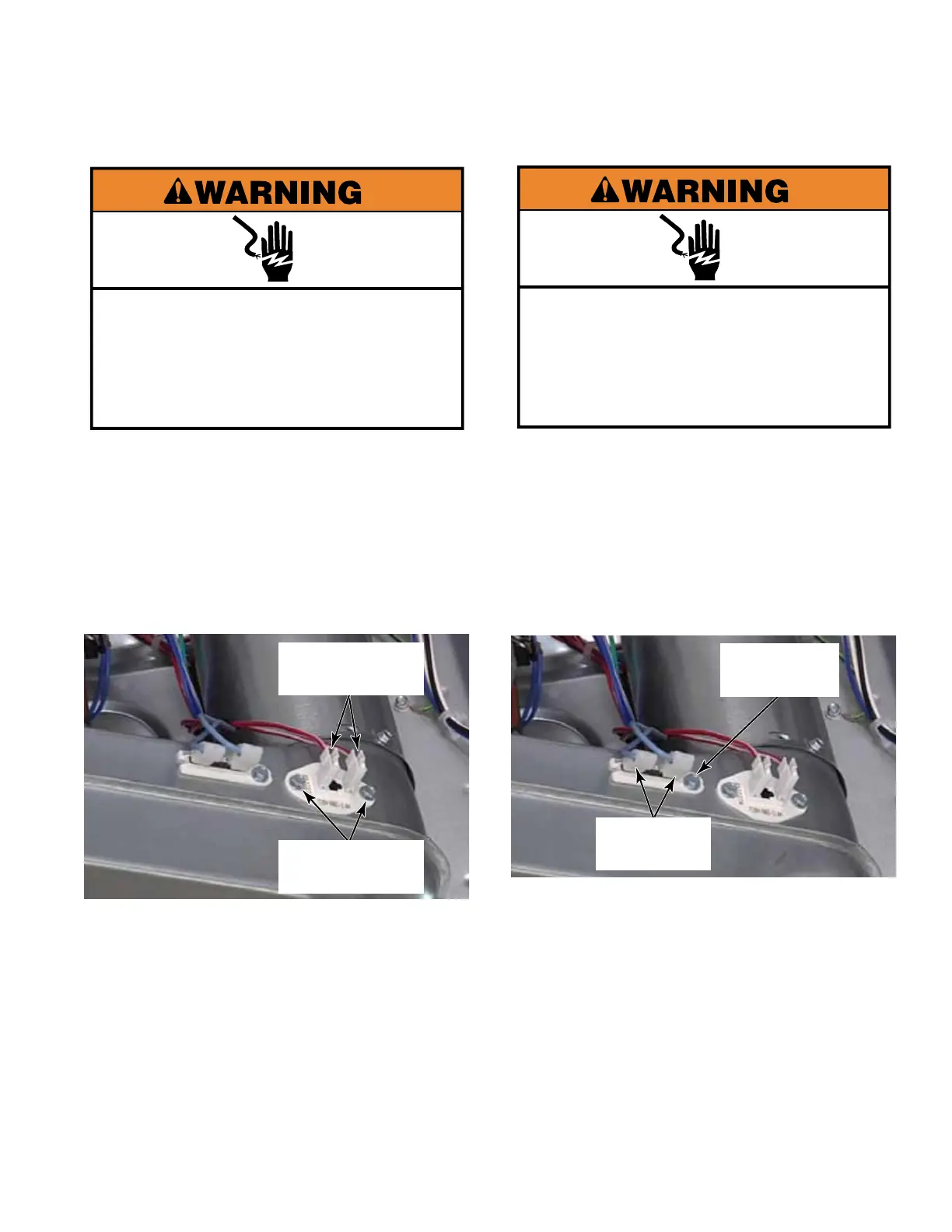

4-31
1. Remove the blower housing cover
(See page 4-21).
2. Remove two wire connectors from the
spade terminals.
3. Remove the 1/4” hex head screw securing
the thermal fuse to the blower housing.
4. Remove the thermal fuse.
NOTE: The thermal fuse is non-resettable.
The rating is printed on the thermal fuse, 91
degrees Celsius. That is the temperature
that the fuse will open, shutting down the
operation of the heat components.
1. Remove the blower housing cover
(See page 4-21).
2. Remove two wire connectors from the
spade terminals.
3. Remove two 1/4” hex head screws and
remove the thermistor.
NOTE: The resistor mounted in the
thermistor changes resistance as heat
changes. The electronic control can
determine the operating temperature of the
dryer based on the resistance being read
from the thermistor.
TECH TIP: This resistor has a plastic cone
molded over it and the thermistor needs to
be removed periodically to clean built up lint
from this cone.
THERMISTOR - DRYER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
THERMAL FUSE - DRYER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two Wire
Connectors
Two 1/4” Hex
Head Screws
Two Wire
Connectors
1/4” Hex
Head Screw
