1. Remove the control panel bracket
(See page 4-8).
2. Use a flat blade screwdriver to lift the
locking tab and disconnect the wire
connector from each coil.
3. Remove two Phillips head screws securing
the bracket to the top of the coils.
4. Lift the bracket off the coils.

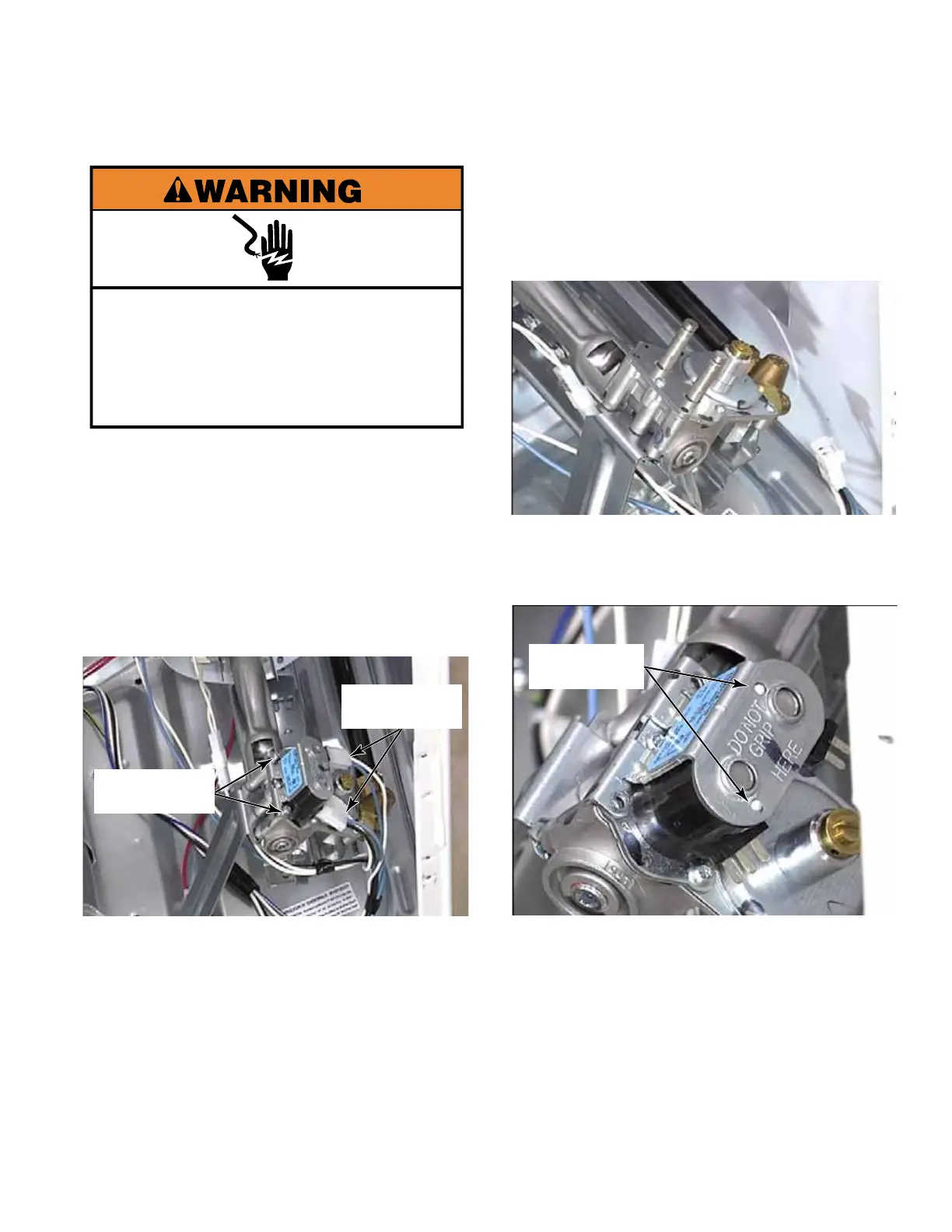

GAS VALVE COILS
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Two Phillips
Head Screws
Two Wire
Connectors
5. Lift the booster and holding coil, with three
terminals, off the post.
6. Lift the secondary coil, with two terminals,
off the post.
7. There is a locating pin on the top of each
coil that fits into a hole in the bracket for
proper orientation of each coil.
Locating Pins
In Holes
