4-35

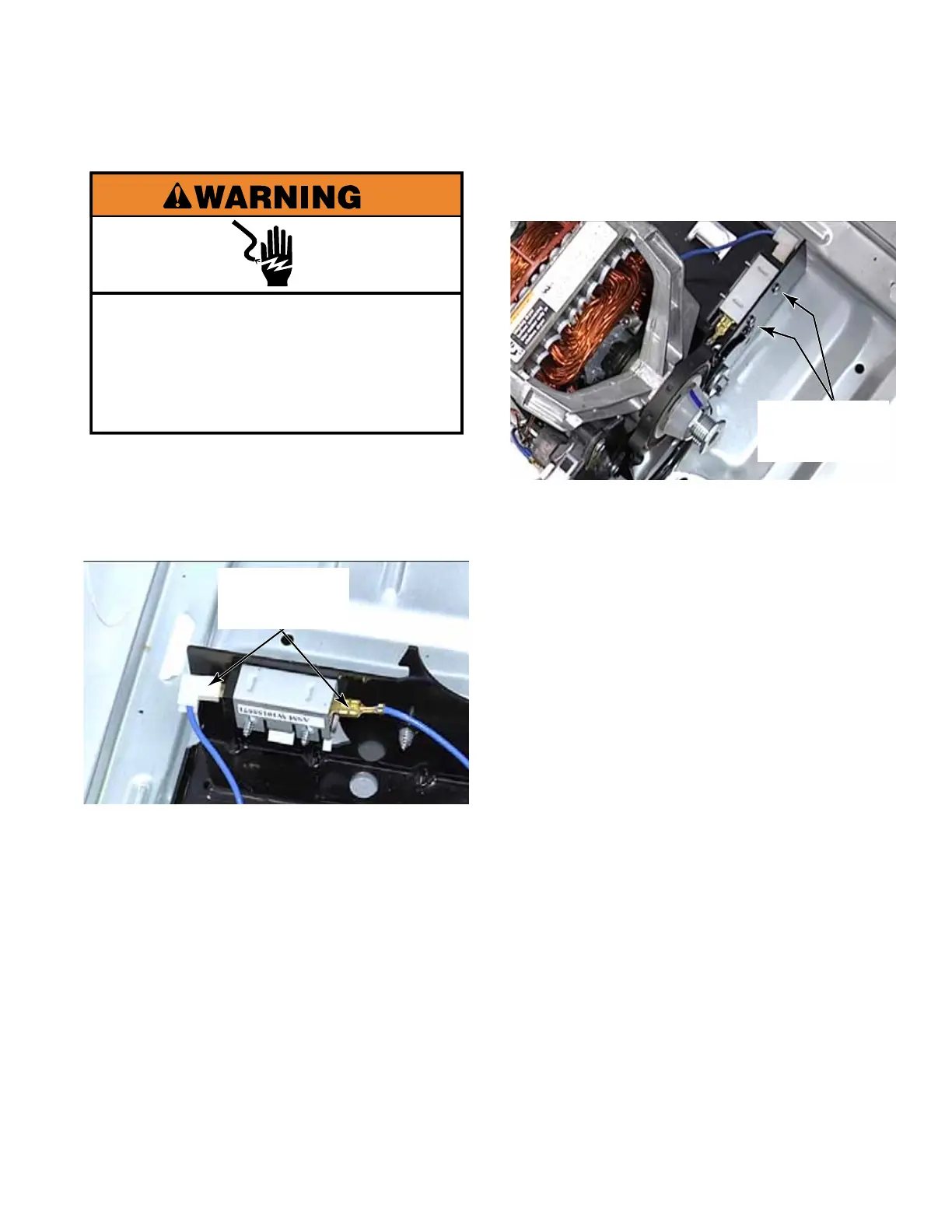

3. Remove two Phillips head screws from the
back of the motor mounting bracket.
NOTE: The belt switch is normally open.
BELT SWITCH
Two Wire
Connectors
1. Remove dryer drum (See page 4-29).
2. Remove the two blue wire spade
connectors from the switch.
Two Phillips
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
To Next Page
