4-71
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the back panel (See page 4-68).
4. Press the locking tab and remove the wire
connector from the sensor.

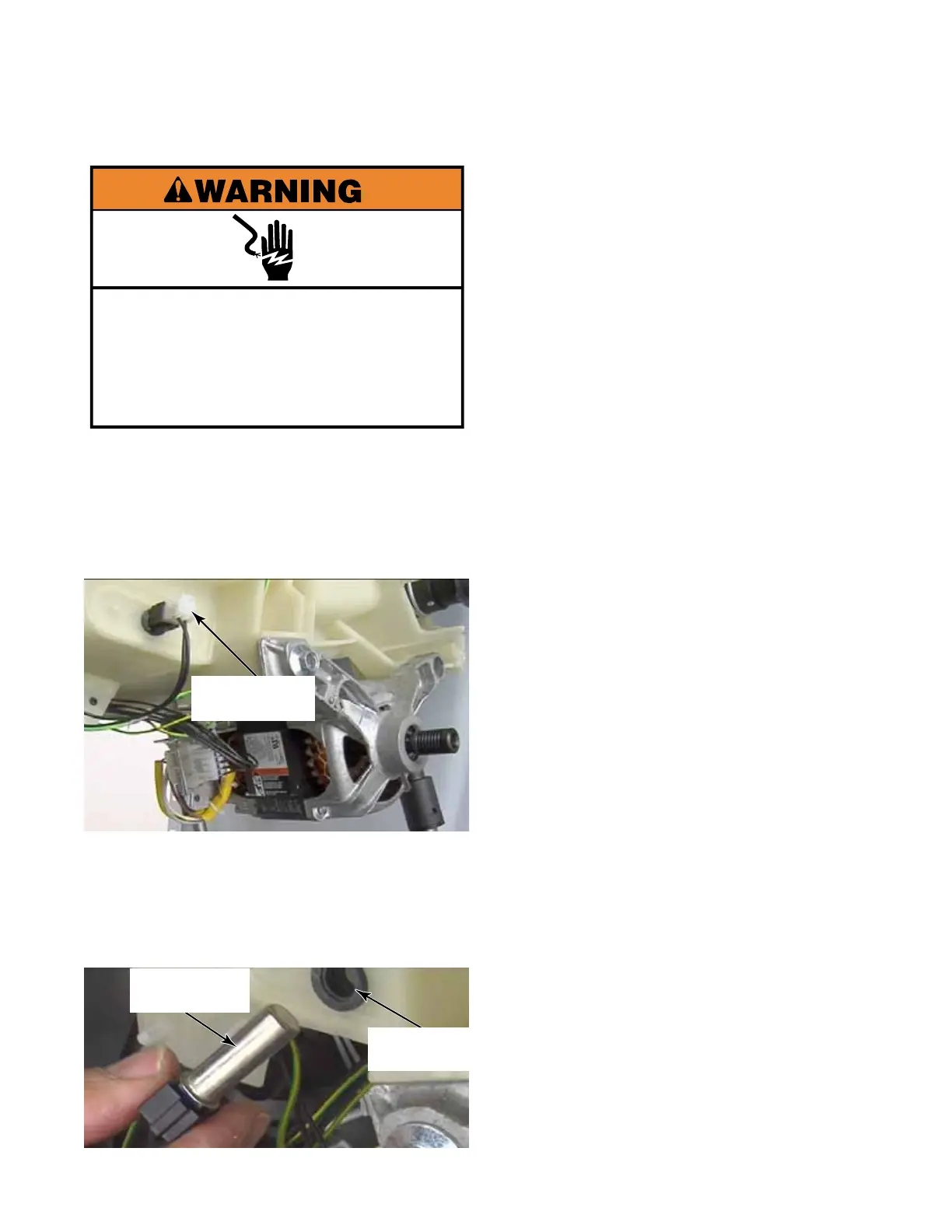

5. Grasp the temperature sensor firmly
and pull using a twisting motion until the
temperature sensor comes out.
TEMPERATURE SENSOR
6. When reinstalling the temperature sensor,
push it into the grommet using a twisting
motion until it is fully seated.
7. Remove and replace the grommet only if
necessary.
8. When installing a grommet, the flanges of
the grommet must seal inside and outside of
the hole in the tub. It is easier to reinstall the
grommet when separated from the sensor.
9. It may help to wet the temperature sensor
when reinstalling it since it is a tight fit in the
rubber grommet.
Temperature
Sensor
Rubber
Grommet
Temperature
Sensor
To Next Page
