4-47
1. If element is serviceable, remove electric
heater assembly (See page 4-46).
2. Remove the 1/4” hex head screw from the
bottom of the housing.
3. Slide mounting bracket tab out of slot in the
housing and remove it.

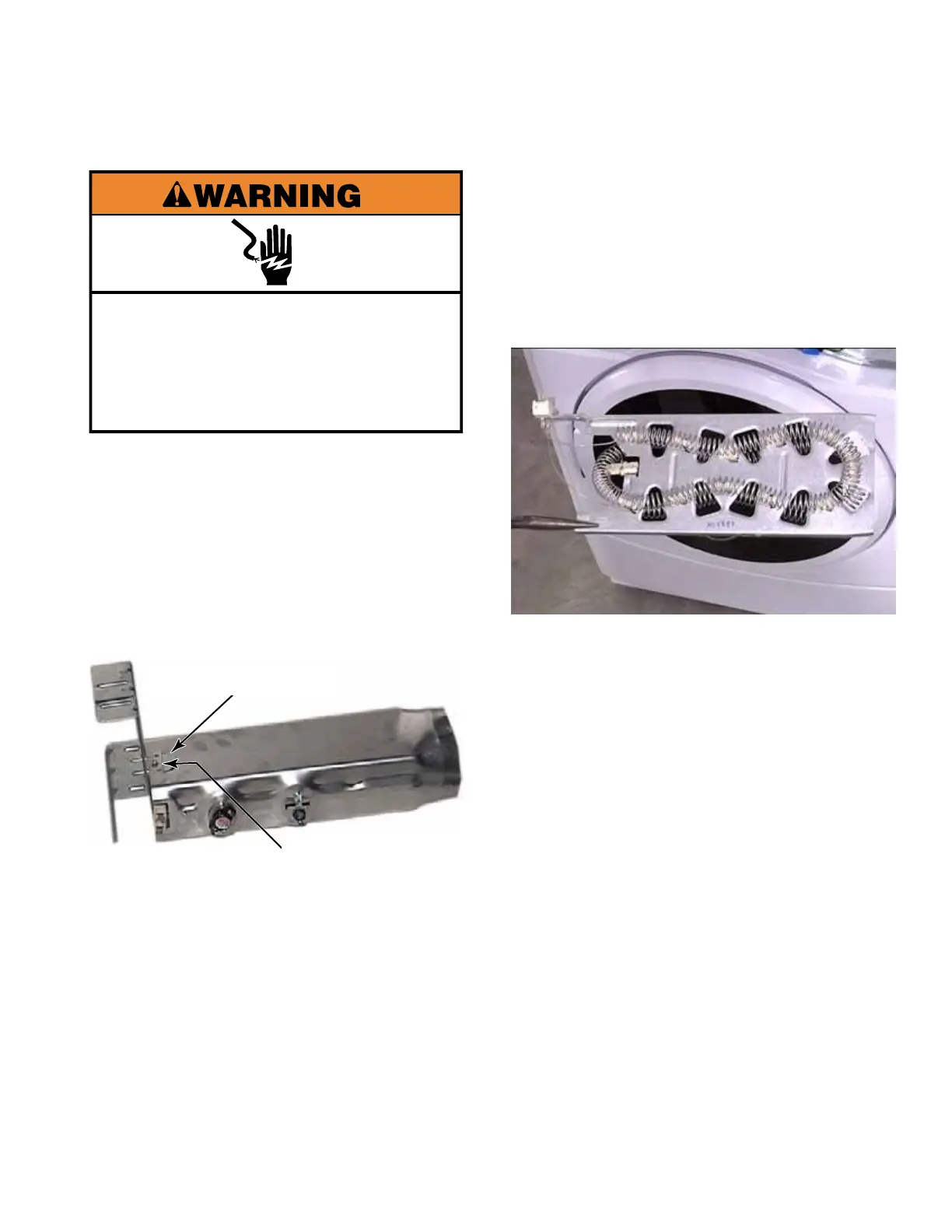

HEATER COIL
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Mounting Bracket Tab
1/4” Hex Head Screw
NOTE: Most heater element assemblies
have a serviceable electric coil element
and others will be supplied as an assembly.
If the element is serviceable: remove the
1/4” hex head screw from the side of the
housing. Remove the heater coil from the
housing using one pair of pliers to hold the
housing and another pair of pliers to pull the
heater coil up out of the housing.
