7. Pull the valve out of the hole in the panel
and lower it to gain access to the hose
clamps and Rast connectors.
NOTE: For proper reinstallation, make
a mark on the hose that is connected to
the port that has a green tag on the wire
harness connector (See bottom photo).
8. Squeeze the clamps and move them down
the hose. Pull hoses off water inlet valve.
9. Lift the locking tab and disconnect the rast
connector from each of the two cold water
inlet valves.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the washer hoses from the hot and
cold water inlet valves.
4. Remove the back panel (See page 4-68).
5. Remove the T-20 security screw, on the
back of the washer, securing the water inlet
valve.
6. Reach inside the washer and twist the
water inlet valve body to align the locking
tabs with the cut-outs in the back panel.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

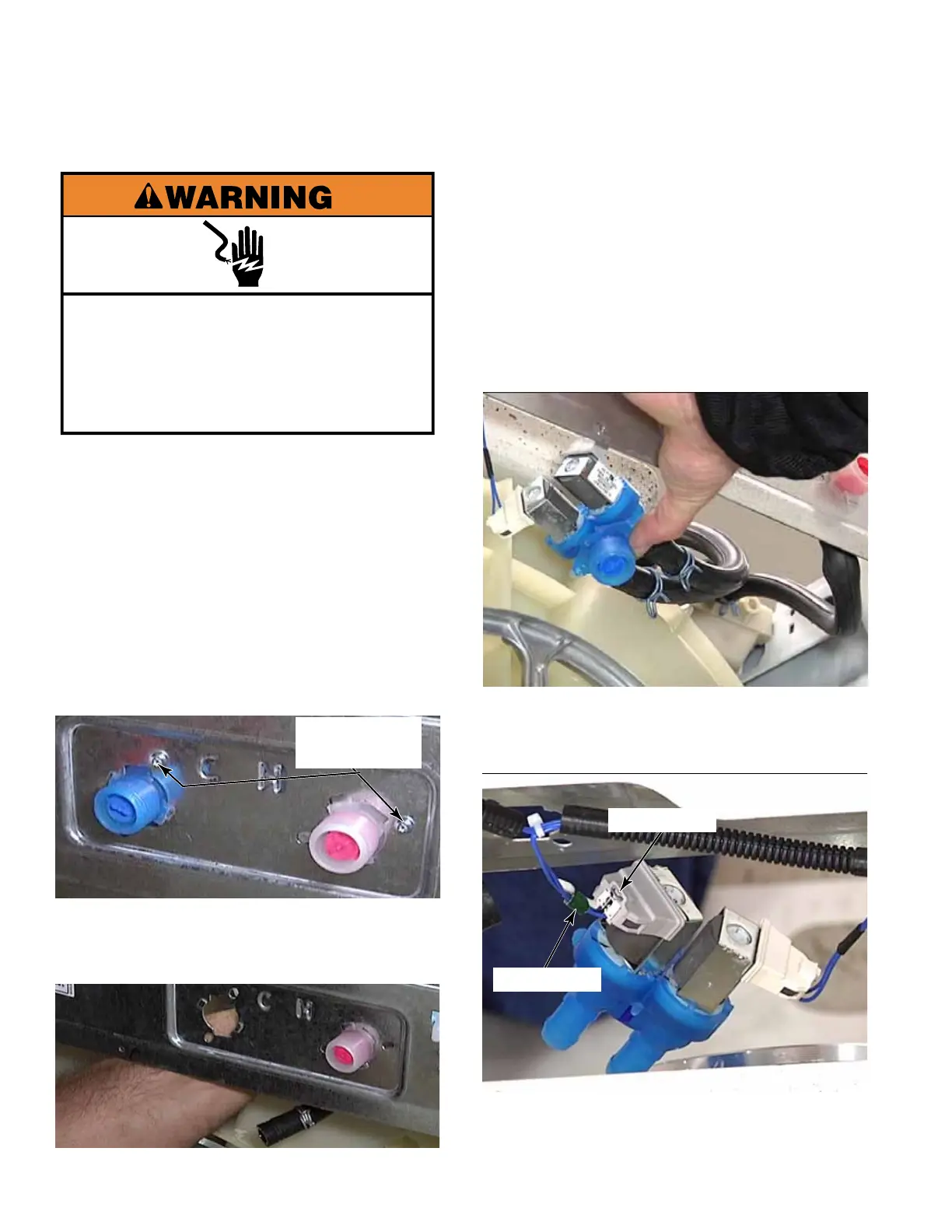

WATER INLET VALVES - REMOVE FROM BACK
WITHOUT REMOVING DRYER
Water Inlet
Valve Screws
Locking Tab
Green Tag
