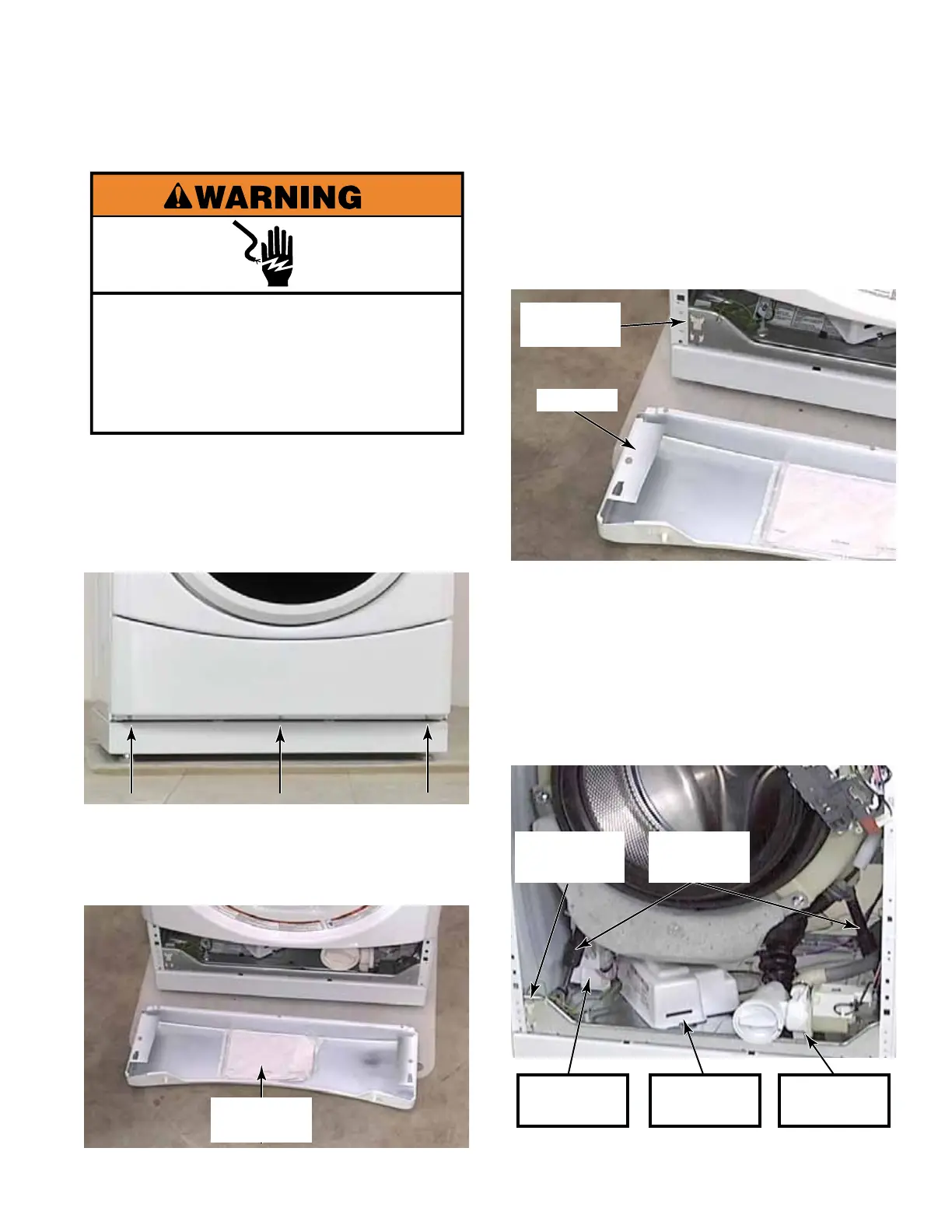

4-61
1. Unplug washer or disconnect power.
2. Remove three 1/4” hex head screws, at the
bottom of the toe panel, securing the panel
to the front of the washer.
3. Slide toe panel down and out to remove it.
4. The tech sheet and parts list is in a plastic
cover on back side of lower service panel.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
TOE PANEL
5. The flange, on the inside left end of the toe
panel, presses against the earth switch in
the lower left corner of the washer cabinet.
Make sure to not bend the flange or the
switch will not be pressed and the washer
will not work.
6. Components located behind toe panel are:
n Earth switch
n Air gap dampers
n Motor control unit
n Central control unit
n Drain pump
Drain Pump
Central
Control Unit
Motor
Control Unit
Air Gap
Dampers
Earth
Switch
Tech Sheet
Location
Earth
Switch
Flange
To Next Page
