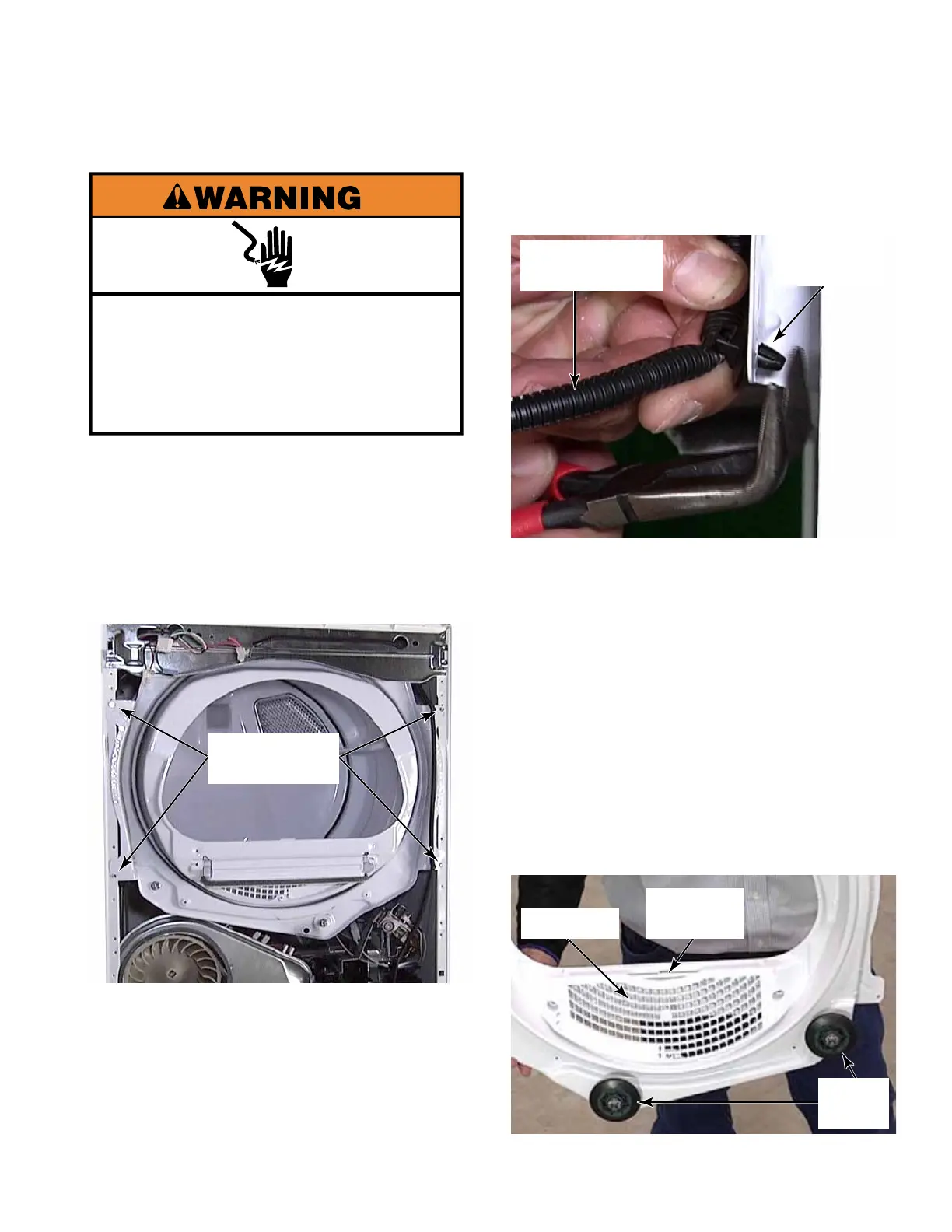

4-23
1. Remove the blower housing cover
(See page 4-21).
2. Loosen, but do not remove, two 1/4” hex
head screws at the top corners of bulkhead.
3. Remove two 1/4” hex head screws from the
bottom corners of the bulkhead.
4. Lift the right side of the front bulkhead
so the top screw can pass through the
snowman hole. Pull the bulkhead away
from the dryer enough to reach the
Christmas tree clips inside.
5. Squeeze the clips, from the inside of the
bulkhead, to release the wire from the front
right side of the bulkhead.
6. Lift the left side of the front bulkhead so top
screw can pass through the snowman hole.
7. Lower the front bulkhead to release the two
rollers from the dryer drum.
8. Remove the front bulkhead.
9. Components on the inside of the front
bulkhead are:
n Outlet grill
n Lint filter door
n Two support rollers
FRONT BULKHEAD - DRYER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1/4” Hex
Head Screws
Christmas
Tree Clip
Wire On Front
Bulkhead
Outlet Grill
Lint Filter
Door
Support
Rollers
To Next Page
