4-24
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

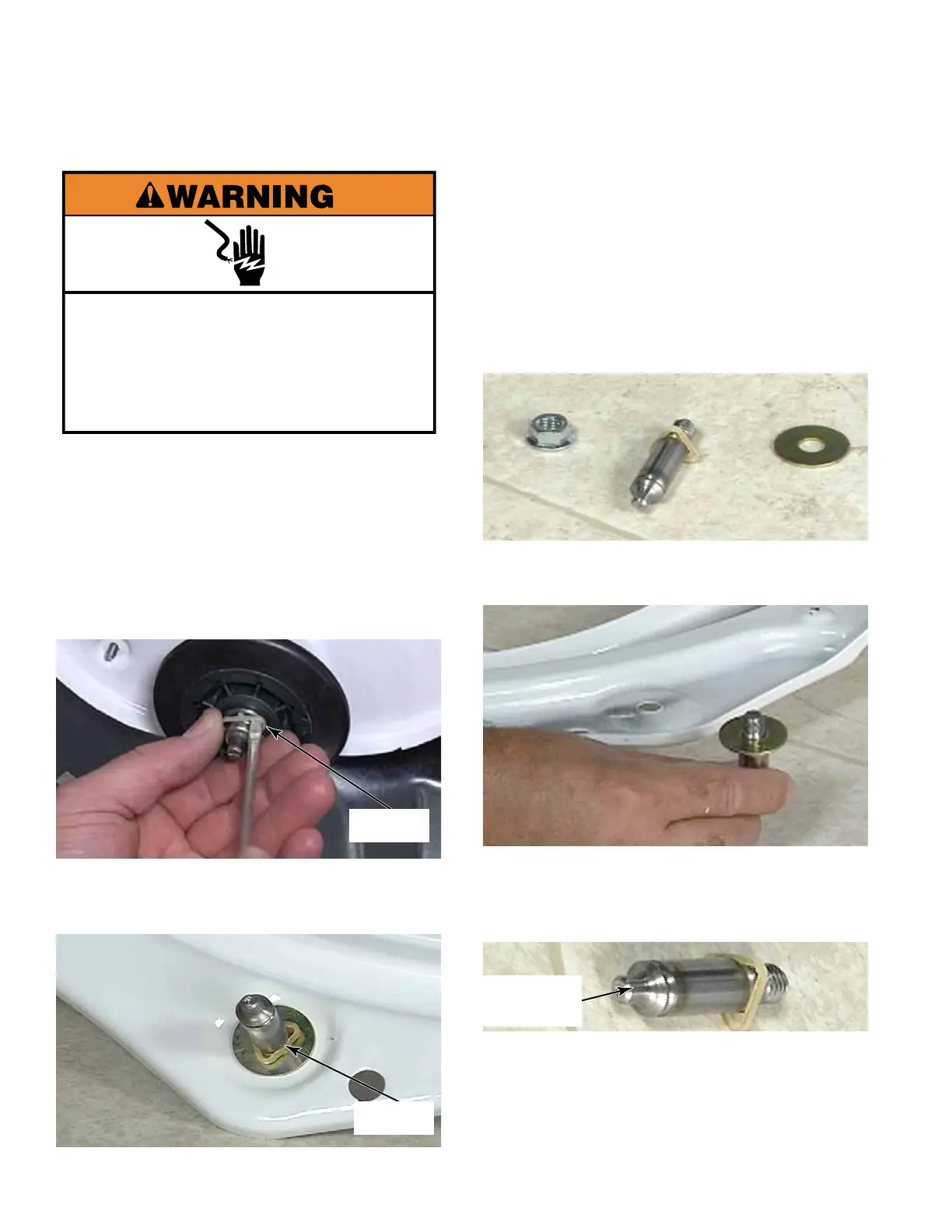

1. Remove the dryer front bulkhead
(See page 4-23).
2. Remove the tri-clip and slide the support
roller off shaft.
3. There is another tri-clip behind the roller for
proper spacing.
NOTE: When replacing a roller, always
replace both tri-clips to make sure the roller
will stay in position while running.
FRONT SUPPORT ROLLERS AND SHAFTS
NOTE: DO NOT lubricate this wheel or
shaft. Lubrication attracts lint and dust
which will cause premature wear of the
support bearing. Clean shaft with fine steel
wool to eliminate squeaks, or replace worn
rollers.
4. Support roller shafts are secured to the
front bulkhead with 14mm (9/16”) nuts and a
washer.
5. The washer is installed on the roller side of
the shaft.
NOTE: To support the roller shaft while
trying to remove the 14mm (9/16”) nut a
locking pliers needs to be used to hold the
tip on the front of the roller shaft.
Tri-Clip
Tri-Clip
Proper
Grip Area
