4-30

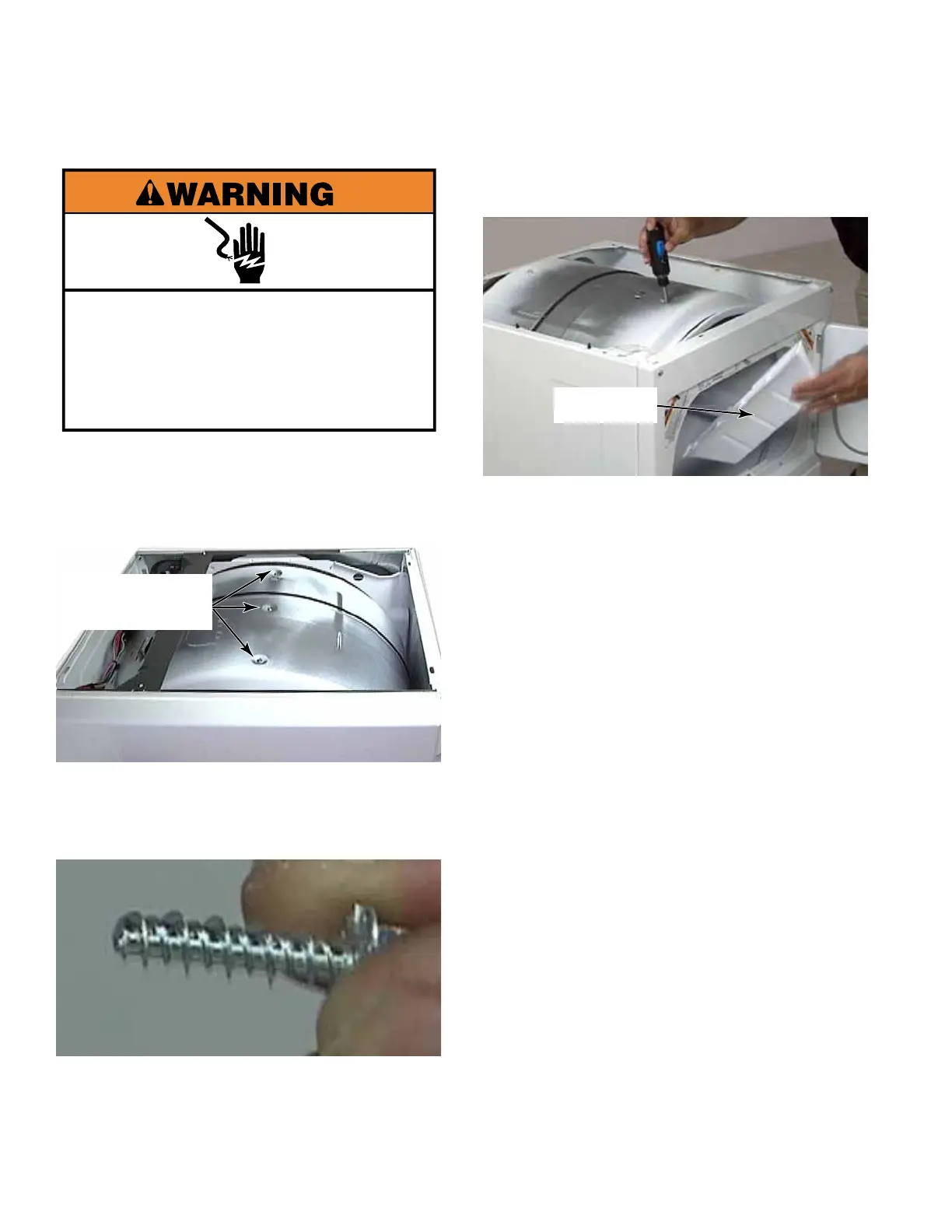

1. Remove dryer top (See page 4-26).
2. Remove two of the three 1/4” hex head
screws securing the baffle to the drum.
NOTE: These screws have multiple
thread depths that grab plastic securely to
help avoid screws becoming loose from
vibration.
Three 1/4” Hex
Head Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
BAFFLE REPLACE - DRYER
3. Open dryer door and hold baffle with one
hand while removing the third screw.
4. Remove baffle from dryer and replace if
necessary.
Bafe
To Next Page
